Tube fans ETAMASTER EC ≤5700 m³/h
| Etamaster EC / Price: |
Select
|
| Price / APG vent guard: |
Select
|
Qty.:
European delivery - 30 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item
Tube fans ETAMASTER EC ≤5700 m³/h
- highly efficient EC motors with ball bearings
- stepless speed control via 0-10 V signal
- diagonal impeller with downstream three-dimensional guide vanes
- three speeds
- integrated thermostatic switch
- housing made from mechanically durable plastic
- with mounting bracket
- made in Germany
- 2 years warranty
- it is recomended to install fan with sealing clamps:
- if the duct is not connected to the fan's air outlet, it is necessary to fit the protective grille APG:
Brand: Ruck

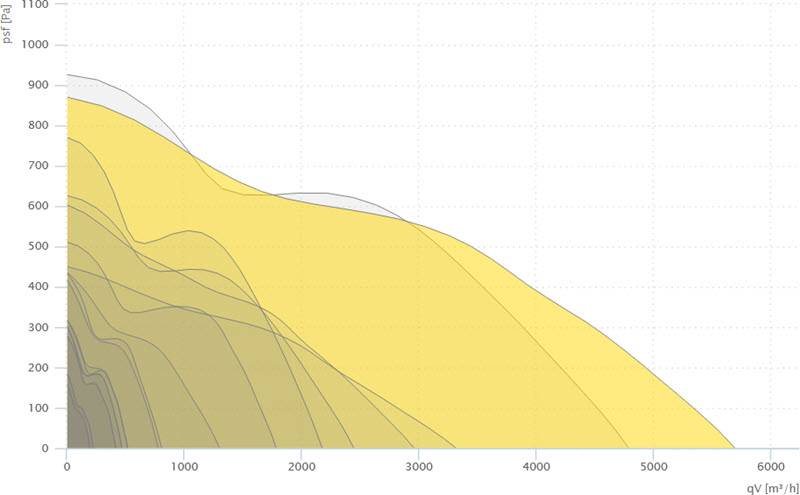

Click the link to opent the drawing:
|
Code
EM
|
Ø hole, mm |
Voltage, V
|
Frequency, Hz
|
Capacity, m³/h
|
Pressure, Pa
|
Power, W | Current, A | Noise level, dB(A)3m | Speed, min-1 | Weight, kg |
| 150LEC01 | 150 | 230 | 50 | 780 | ~420 | 67 | 0.6 | 74/75/56 | 3790 | 2.4 |
| 160LEC01 | 160 | 230 | 50 | 810 | ~430 | 73 | 0.7 | 72/75/55 | 3730 | 2.6 |
| 200EC01 | 200 | 230 | 50 | 1300 | ~430 | 121 | 1.0 | 77/79/62 | 3170 | 3.2 |
| 250EC01 | 250 | 230 | 50 | 1780 | ~510 | 179 | 1.5 | 76/79/66 | 3110 | 5.7 |
| 250EC02 | 250 | 230 | 50 | 2175 | ~780 | 304 | 2.1 | 82/86/67 | 3880 | 4.1 |
| 280EC01 | 280 | 230 | 50 | 2440 | ~630 | 267 | 1.9 | 82/83/75 | 3170 | 5.6 |
| 315EC01 | 315 | 230 | 50 | 2960 | ~660 | 282 | 2.0 | 77/80/69 | 2800 | 6.9 |
| 355EC01 | 355 | 230 | 50 | 3320 | ~450 | 261 | 1.8 | 73/76/63 | 2170 | 8.7 |
| 355EC02 | 355 | 230 | 50 | 4790 | ~920 | 731 | 3.4 | 84/88/65 | 3010 | 9.8 |
| 400EC01 | 400 | 230 | 50 | 5700 | ~870 | 729 | 3.5 | 81/86/64 | 2620 | 11.6 |
Included with the device when sold.
