Three step fan speed controller SMT-1-30-4C 3.0 A IP44/54
PRICE:
50.30 € 67.06 €
Qty.:
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item
Three step fan speed controller SMT-1-30-4C 3.0 A IP44/54
- SMT-1-30-4C switch is designed to manually control the speed of three-speed fans
- three positions (1, 2 and 3) ensure the output of 230 VAC / 50-60 Hz in each position
- max resistive load is 10 A (inductive 3 A)
- several fans may be connected until the permitted maximum current is exceeded
- the rotary handle is designed for multi-speed motor speed control
- the switch is suitable for sub-assembling (IP44) and over-mounting (IP54)
- plastic box: ASA, RAL 9010 white - Ivory, polyamide cover, compliant with IEC 60335 standard
- maximum ambient temperature 50 °C
- compatible with the low voltage directive 2014/35 / EC, RoHs directive 2011/65 / EC
- 2 years warranty
Brand: ESEM
Dimensions and installation:
|
Code
|
Voltage, VAC |
Voltage, VAC
at frequency 50 Hz
|
Protection class (for mounting in the wall)
|
Protection class (for mounting on the wall)
|
Relative humidity rH (non-condensate)
|
Electric current, (resistive) A
|
Electric current, (inductive) A
|
Maximum ambient temperature, °C
|
|
SMT-1-30-4C
|
230 ± 10% |
230
|
IP44
|
IP54
|
< 95 %
|
10
|
3 |
50
|

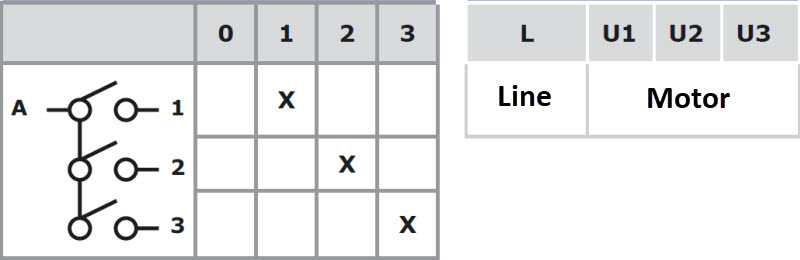

Connection scheme
