PRIMUS W snap lock - big size access panels with snap lock for wall application
| PRIMUS / Price: |
Select
|
Qty.:
European delivery - 30 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item

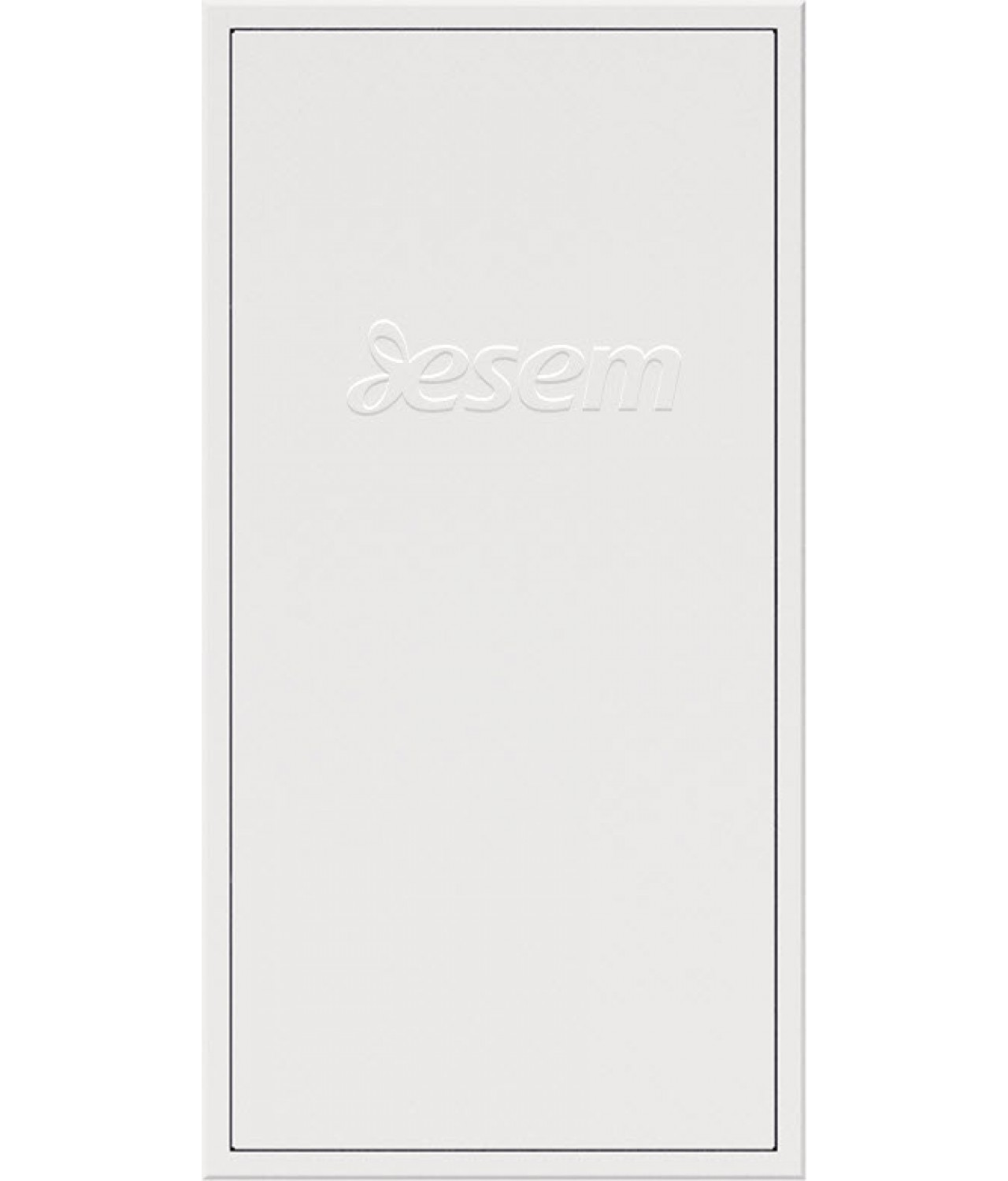

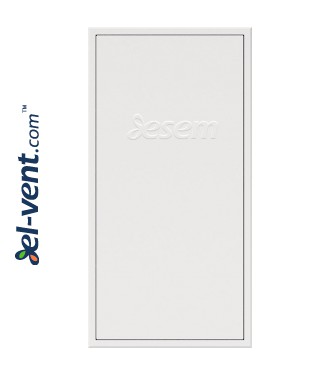

PRIMUS W snap lock - big size access panels with snap lock for wall application
- PRIMUS W snap lock - big size access panels with snap lock for wall application
- doors made from galvanized steel sheet and coated in white RAL9016
- removable door panel galvanised steel sheet for right and lefthanded hinging.
- handle is unnecessary
- easy to install with mounting glue or cement
- can be opened to the right or left, up and down
- custom sizes to the nearest cm on request, painted according requested RAL colour
- Made in Germany.
Brand: ESEM

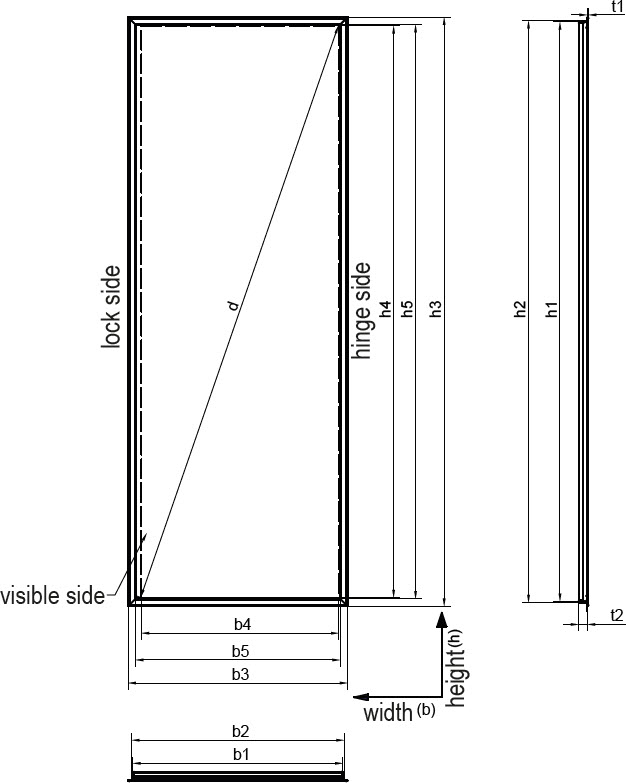

| PRIMUS W snap lock |
b x h
|
b1 x h1 | b2 x h2 min. | b2 x h2 max. | b3 x h3 | b4 x h4 | b5 x h5 | t1 / t2 | d | Locs |
| 20011 | 400x800 | 393x793 | 395x795 | 403x803 | 420x820 | 370x770 | 377x777 | 3.5x25 | 854 | 3 |
| 20013 | 500x800 | 493x793 | 495x795 | 503x803 | 520x820 | 470x770 | 477x777 | 3.5x25 | 902 | 3 |
| 20015 | 500x1000 | 493x993 | 495x995 | 503x1003 | 520x1020 | 470x970 | 477x977 | 3.5x25 | 1077 | 3 |
| 20017 | 600x800 | 593x793 | 595x795 | 603x803 | 620x820 | 570x770 | 577x777 | 3.5x25 | 958 | 3 |
| 20019 | 600x1000 | 593x993 | 595x995 | 603x1003 | 620x1020 | 570x970 | 577x977 | 3.5x25 | 1125 | 3 |
| 20020 | 800x800 | 793x793 | 795x795 | 803x803 | 820x820 | 770x770 | 777x777 | 3.5x25 | 1088 | 3 |
| 20021 | 1000x1000 | 993x993 | 995x995 | 1003x1003 | 1020x1020 | 970x970 | 977x977 | 3.5x25 | 1371 | 3 |
