  • 75-2-4-2-4-160 182.95 € 82.33 € (-54%)
  • 75-3-6-3-6-200 278.78 € 125.45 € (-55%)
Qty.:

European delivery - 21 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

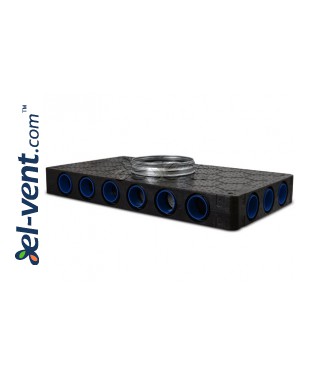

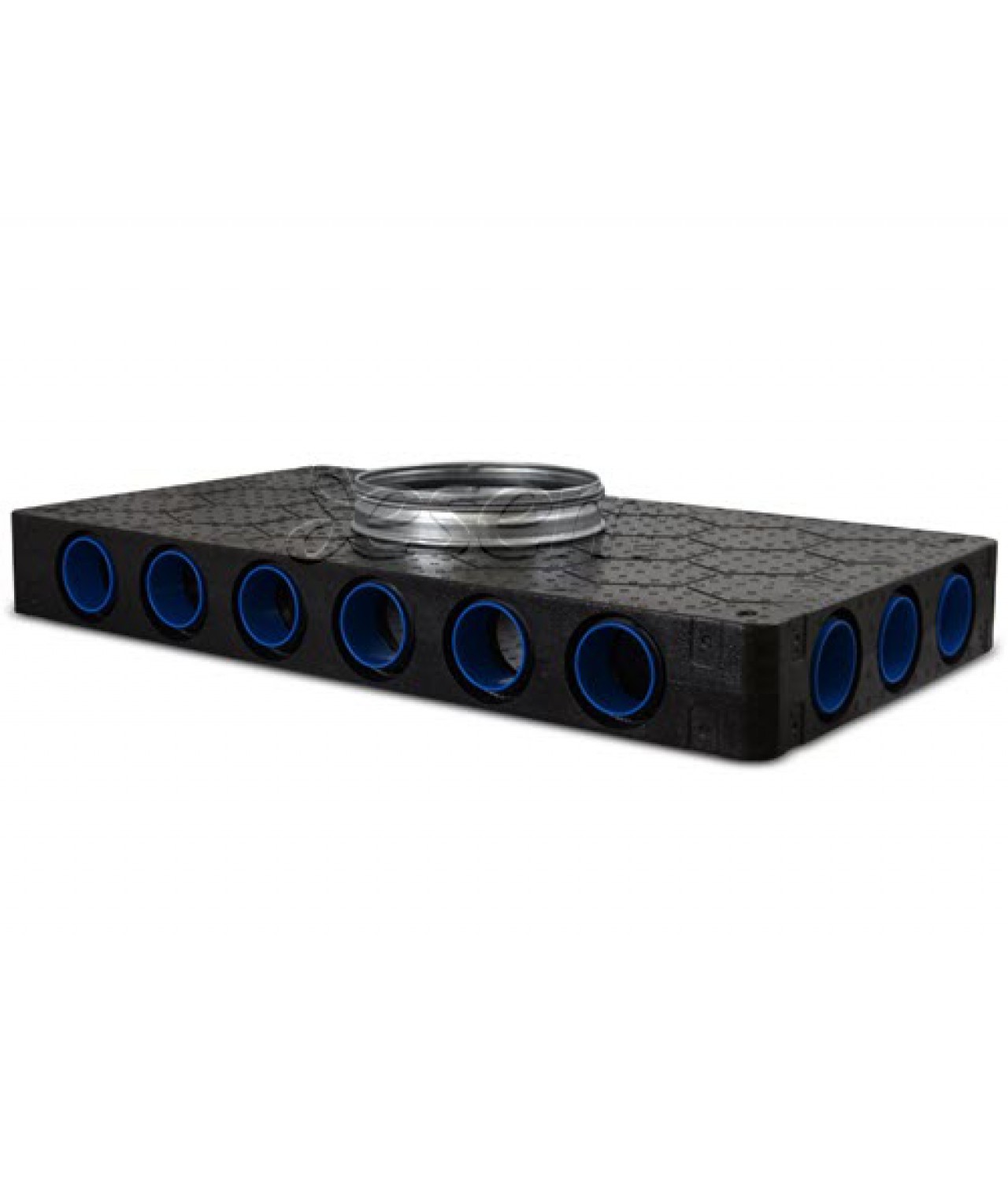

Manifolds for duct system OSPPD

  • OSPPD - EPP blown polypropylene manifolds for duct systems
  • EPP is a super strong and good insulating material, thermal conductivity λ=0.039, wall thickness from 8 to 31 mm
  • the profiled inner part of the box reduces pressure losses - air passes more easily and quietly
  • duct connection flange (d1)
  • 2 installation methods - bolt or special angles
  • meets airtightness class C according to EN12237
  • easy installation - simply slide the duct onto the connector

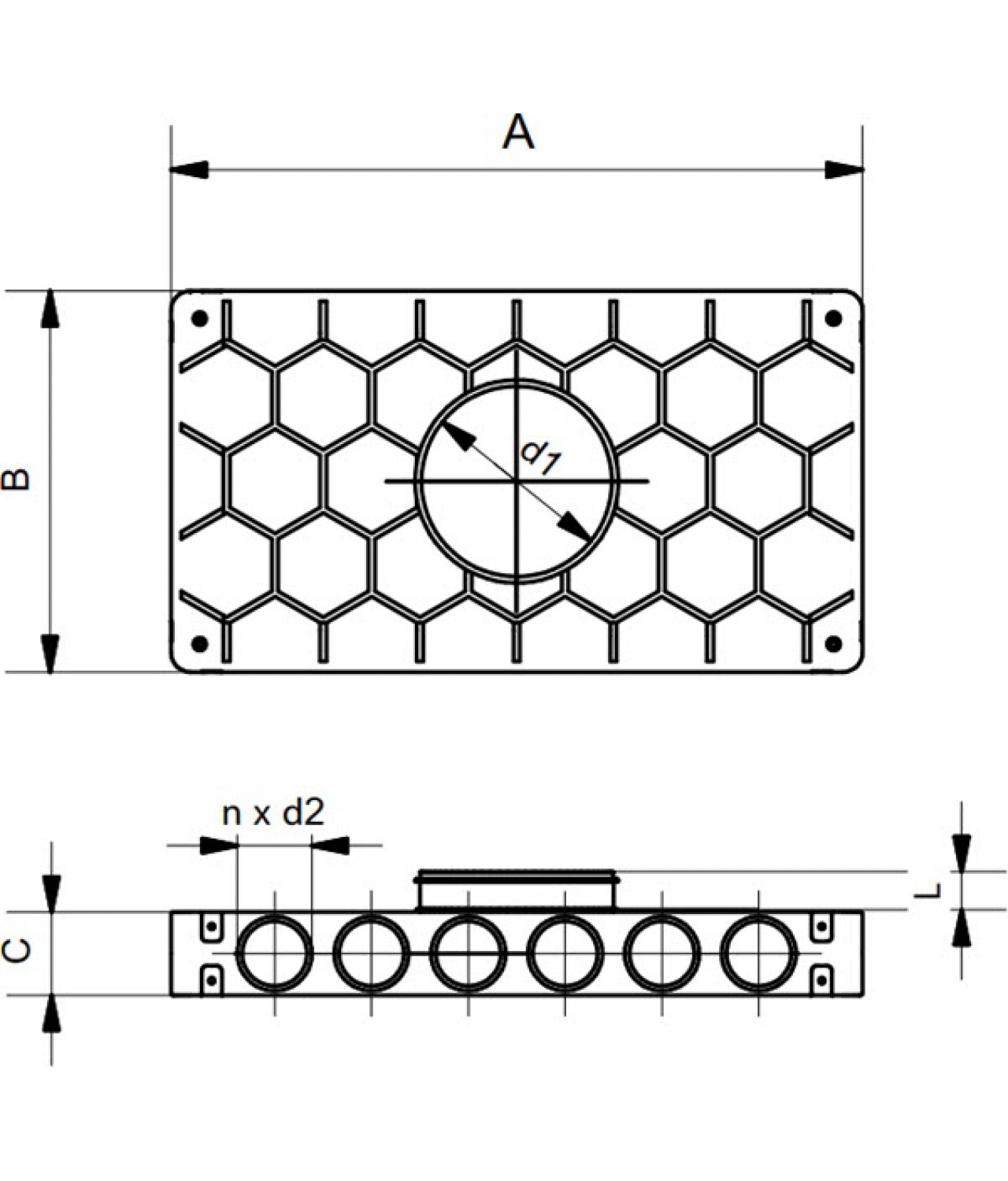

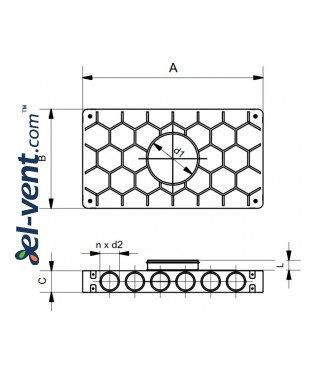

  • marking:
Ød1 - ventilation unit connectors diameter, mm
Ød2 - rigid duct connectors diameter, mm
n - number of rigid duct connections, Ø75 mm - inner connections

Brand: ESEM
Code
A B C L d1 n d2
OSPPD75-2-4-2-4-160 514 320 86 36 160 12 63
OSPPD75-3-6-3-6-200
714 394 86 36 200 18 63
