Kitchen exhaust fans BKEF Pressure ≤10000 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Kitchen fans
  4. › Kitchen exhaust fans BKEF Pressure ≤10000 m³/h

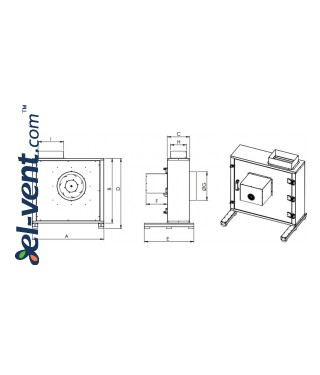

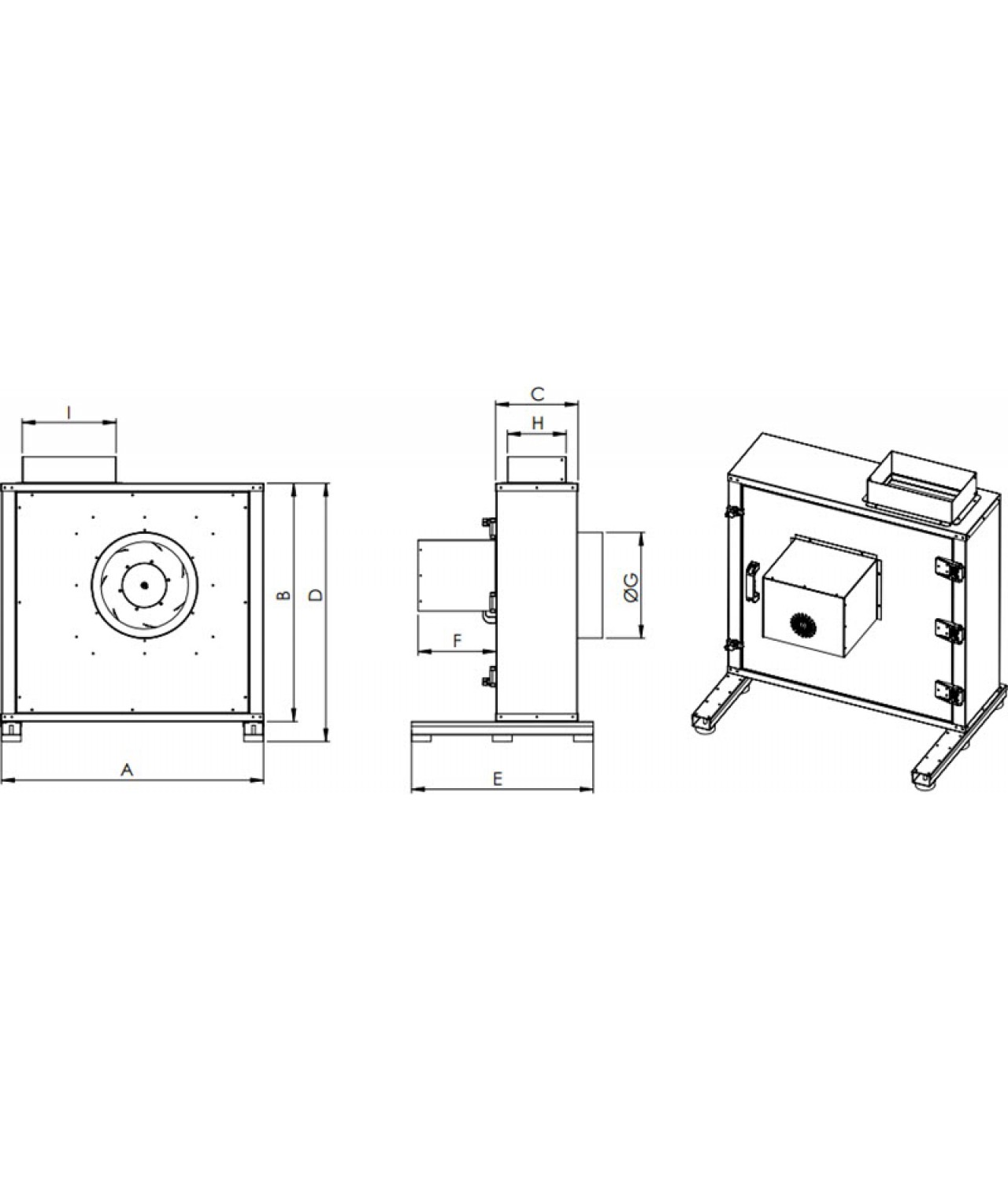

Kitchen exhaust fans BKEF Pressure ≤10000 m³/h BKEF Pressure fan drawing
Price / BKEF Pressure:
Select
  • 315M 1,418.01 € 1,063.51 € (-25%)
  • 315T 1,314.70 € 986.02 € (-25%)
  • 355M 1,632.14 € 1,224.11 € (-25%)
  • 355T 1,576.74 € 1,182.56 € (-24%)
  • 400M 1,777.38 € 1,333.03 € (-25%)
  • 400T 1,680.06 € 1,260.05 € (-25%)
  • 450M 2,529.07 € 1,896.80 € (-25%)
  • 450T 2,394.30 € 1,795.72 € (-25%)
  • 500M 2,506.61 € 1,879.95 € (-25%)
  • 500T 2,458.70 € 1,844.02 € (-25%)
  • 560M 2,913.90 € 2,185.42 € (-25%)
  • 560T 2,859.99 € 2,144.99 € (-25%)
Qty.:

European delivery - 45 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

Kitchen exhaust fans BKEF Pressure ≤10000 m³/h

Send
  • BKEF Pressure - high pressure kitchen exhaust fans
  • insulated double casing in galvanised steel - 315-355-400 models, aluminium - 450-500-560 models
  • conveys fat impregnated kitchen extract air, up to 120 °C
  • special design allowing the fan impeller to be opened and cleaned without disrupting the ductwork
  • asynchronous motors in all models
  • backward curved centrifugal impeller
  • integrated condensate drain
  • motor outside the airflow
  • with mounting bracket
  • made in Turkey
  • 2 years warranty

Brand: ESEM
Code A B C D E F G H J
BKEF315 650 605 220 665 480 245 250 160 230
BKEF355 730 655 230 715 490 245 280 170 260
BKEF400 815 740 255 800 580 245 330 185 295
BKEF450 905 810 270 870 580 245 350 210 325
BKEF500 1005 900 335 990 635 280 400 280 355
BKEF560 1105 1000 365 1090 715 330 455 310 455



Code Voltage, V Frequency, Hz Power, kW Current, A Capacitor, μF Speed, min-1 Capacity, m³/h Noise level, dB(A)4-10m Insulation class Protection class IP Weight, kg
315M 230 50 0.25 2.1 10 1390 1800 37-29 F 55 51
355M 230 50 0.25 2.1 10 1390 2800 41-33 F 55 63
400M 230 50 0.37 3.4 15 1400 4000 42-34 F 55 78
450M 230 50 0.55 4.5 20 1410 5200 45-37 F 55 87
500M 230 50 1.1 7.5 35 1400 8000 49-42 F 55 120
560M 230 50 2.2 14.2 50 1430 10000 52-44 F 55 145
315T 380 50 0.25 0.87 - 1380 1800 37-29 F 55 51
355T 380 50 0.25 0.87 - 1380 2800 41-33 F 55 53
400T 380 50 0.37 1.2 - 1390 4000 42-34 F 55 78
450T 380 50 0.55 1.6 - 1365 5200 45-37 F 55 87
500T 380 50 1.1 2.6 - 1410 8000 49-42 F 55 120
560T 380 50 2.2 4.9 - 1420 10000 52-44 F 55 145



Pressure loss
