Invisible and magnetic tile access panels MAGNA


  1. Ventilation systems ›
  2. Access panels, doors, hatches
  3. › Tile access panels
  4. › Invisible and magnetic tile access panels MAGNA
Invisible and magnetic tile access panels MAGNA Tile access panels MAGNA - image No.1 Tile access panels MAGNA - image No.2 Tile access panels MAGNA - image No.3 Invisible and magnetic tile access panels MAGNA - drawing Tile access panels MAGNA - 80701 Tile access panels MAGNA - 80702 Tile access panels MAGNA - 80703 Tile access panels MAGNA - 80704 Tile access panels MAGNA - 80711 Tile access panels MAGNA - 80712 Tile access panels MAGNA - 80721 Tile access panels MAGNA - 80722 Tile access panels MAGNA - 80723 Tile access panels MAGNA - 80732 Tile access panels MAGNA - 80733 Tile access panels MAGNA - 80742 Tile access panels MAGNA - 80752 Tile access panels MAGNA - 80764 Suction holder for tile access panels MAGNA SU50, Ø50 mm
Price / MAGNA:
Select
  • (100x2)x(200x1) - 209x206 mm, 80711 46.16 € 34.62 € (-25%)
  • (100x2)x(200x2) - 209x409 mm, 80712 74.96 € 56.22 € (-25%)
  • (150x1)x(150x1) - 156x156 mm, 80701 34.90 € 26.17 € (-25%)
  • (150x2)x(150x1) - 309x156 mm, 80702 53.45 € 40.09 € (-24%)
  • (150x2)x(150x2) - 309x309 mm, 80703 73.69 € 55.27 € (-24%)
  • (150x2)x(200x1) - 309x206 mm, 80722 59.04 € 44.27 € (-25%)
  • (150x2)x(200x2) - 309x409 mm, 80723 100.96 € 75.72 € (-25%)
  • (150x3)x(150x2) - 462x309 mm, 80704 105.88 € 79.41 € (-24%)
  • (200x1)x(200x1) 206x206 mm, 80731 MPCV4 51.11 € 38.33 € (-25%)
  • (200x1)x(250x1) 206x256 mm, 80741 MPCV5 53.24 € 39.93 € (-25%)
  • (200x1)x(300x1) 206x306 mm, 80751 MPCV6 56.43 € 42.33 € (-25%)
  • (200x2)x(200x1) - 409x206 mm, 80732 72.84 € 54.63 € (-25%)
  • (200x2)x(200x2) - 409x409 mm, 80733 111.89 € 83.91 € (-25%)
  • (200x2)x(250x1) - 409x256 mm, 80742 78.26 € 58.70 € (-25%)
  • (200x2)x(300x1) - 409x306 mm, 80752 87.92 € 65.95 € (-24%)
  • (250x1)x(250x1) 256x256 mm, 80761 54.29 € 40.72 € (-25%)
  • (250x1)x(300x1) 256x306 mm, MPCV17 60.29 € 45.22 € (-25%)
  • (250x1)x(330x1) 256x336 mm, 80762 MPCV10 62.16 € 46.62 € (-24%)
  • (250x1)x(350x1) 256x356 mm, MPCV18 62.16 € 46.62 € (-24%)
  • (250x1)x(400x1) 256x406 mm, MPCV15 67.22 € 50.41 € (-25%)
  • (300x1)x(300x1) 306x306 mm, MPCV11 63.62 € 47.72 € (-24%)
  • (400x1)x(500x1) - 406x506 mm, 80764 130.35 € 97.77 € (-24%)
Price / SU50 suction holder:
Select
  • SU50 9.46 € 7.10 € (-24%)
Qty.:

EU shipping 14 working days, non EU 21 working days

Ask a question about this item

Ask a question about this item

Invisible and magnetic tile access panels MAGNA

Send
  • Magna - invisible and magnetic tile access panels
  • the principle - glue a tile to a metal plate, which then sticks to the magnets on the frame
  • for opening the door, we recommend using the SU50 suction cup - the panel is fully removable by detaching it from the magnets
  • it is possible to glue more small tiles than indicated in the drawings, choose the dimensions individually
  • with adjustable magnets (see picture below)
  • minimum tile thickness - 3 mm
  • maximum tile thickness - 10 mm
  • with mounting frame from PVC plastic (the frame will remain unpatterned once the finisher has done a proper job)
  • plate for tile made from galvanized sheet
  • for installation in ceiling or wall
  • easy to install with mounting glue or cement
  • suitable for installation in wet areas



Installation example

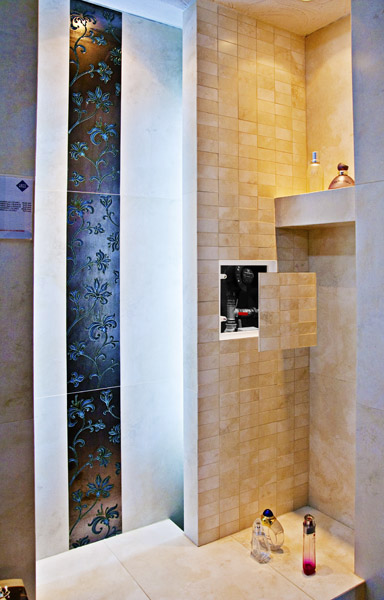

opened

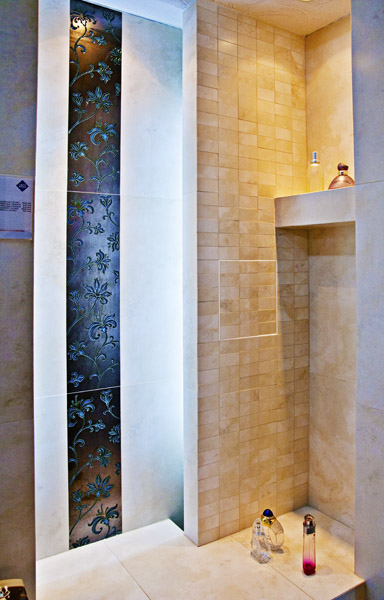

closed



Fixing and fitting


Brand: ESEM
Code MAGNA
 Tiles Tile measurment
A
B
X
Y
Z
80711
 2 100x200
200
200
 206 209
30
80712 4 100x200 200 400 209 409 30
80701 1 150x150 150 150 156 156 30
80702 2 150x150 300 150 309 156 30
80703 4 150x150 300 300 309 309 30
80704 6 150x150 450 300 462 309 30
MPCV2 80721 1 150x200 150 200 156 206 30
80722 2 150x200 300 200 309 206 30
80723 4 150x200 300 400 309 409 30
MPCV4 80731 1 200x200 200 200 206 206 30
80732 2 200x200 400 200 409 206 30
80733 4 200x200 400 400 409 409 30
MPCV5 80741 1 200x250 200 250 206 256 30
80742 2 200x250 400 250 409 256 30
MPCV6 80751 1 200x300 200 300 206 306 30
80752 2 400x300 400 300 409 306 30
MPCV9 1 225x300 225 300 231 306 30
MPCV19 80761 1 250x250 250 250 256 256 30
MPCV17 1 250x300 250 300 256 306 30
MPCV10 80762 1 250x330 250 330 256 336 30
MPCV18 1 250x350 250 350 256 356 30
MPCV15 1 250x400 250 400 256 406 30
MPCV11 1 300x300 300 300 306 306 30
80764 1 400x500 400 500 406 506 30
