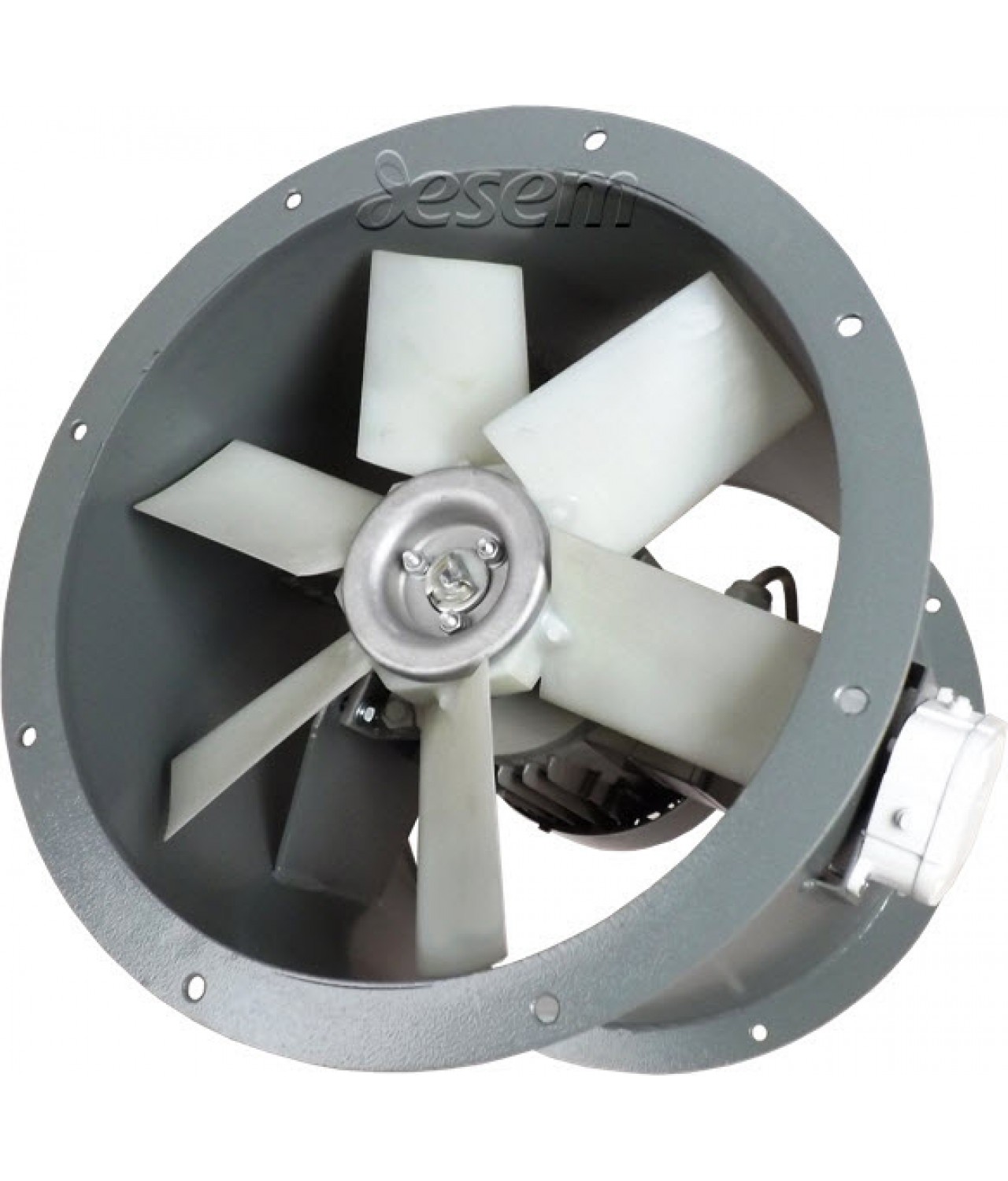

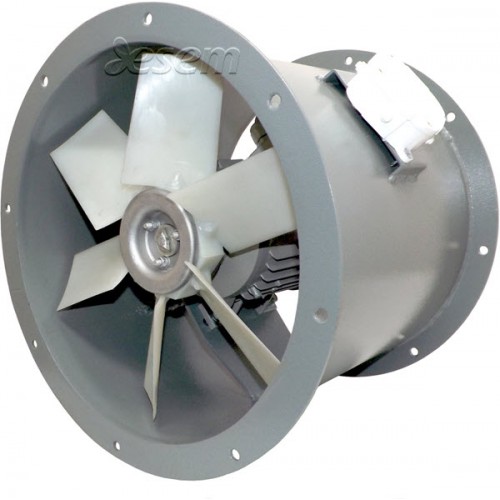

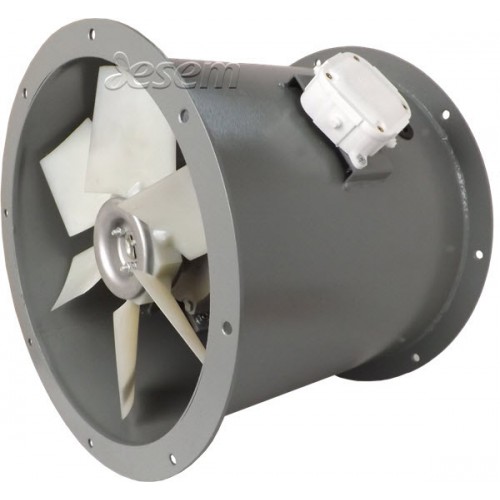

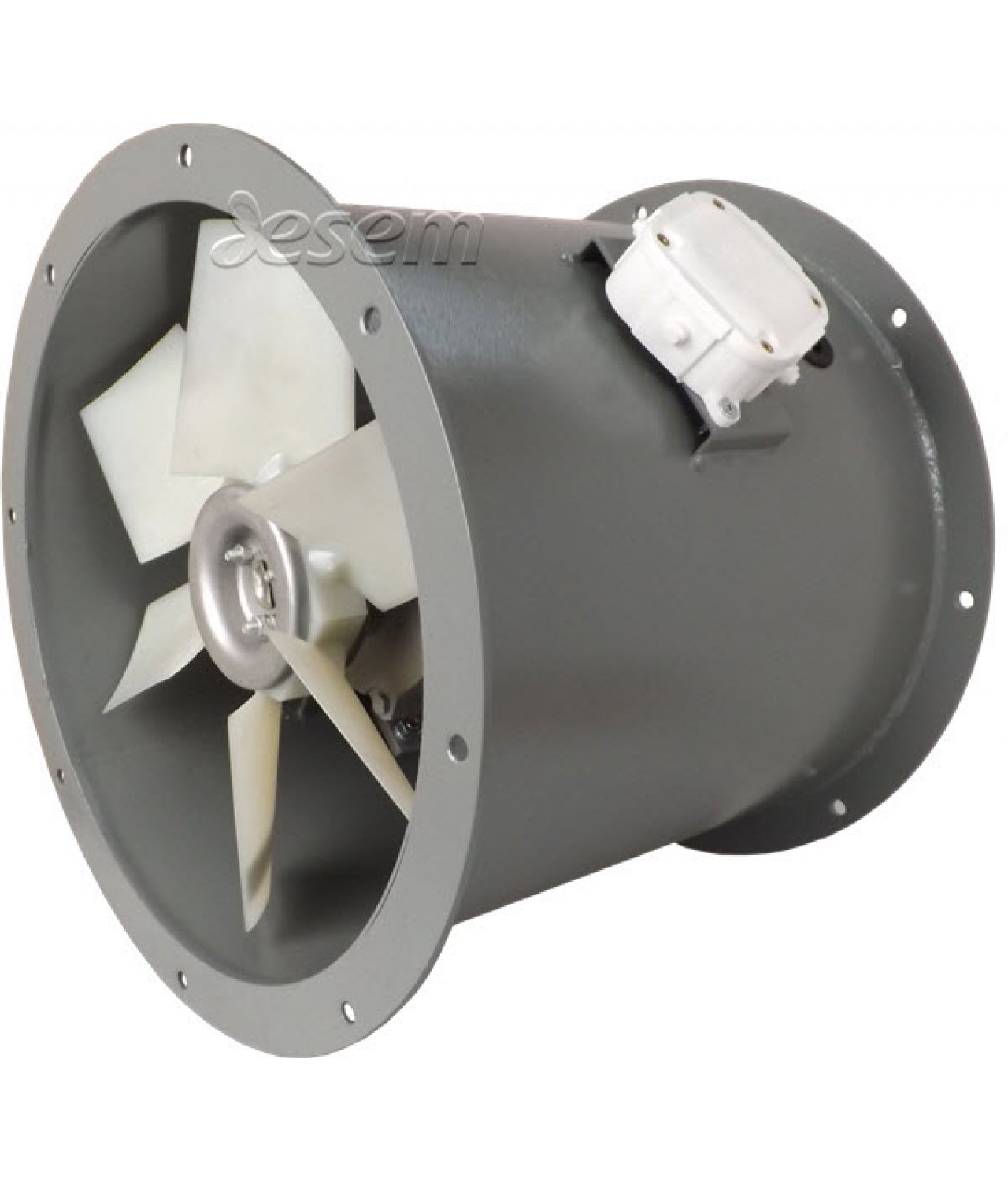

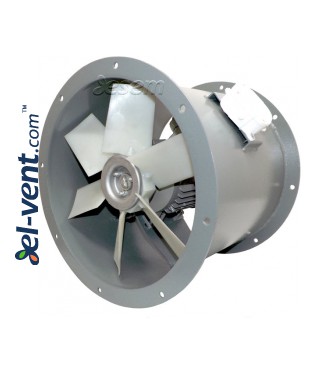

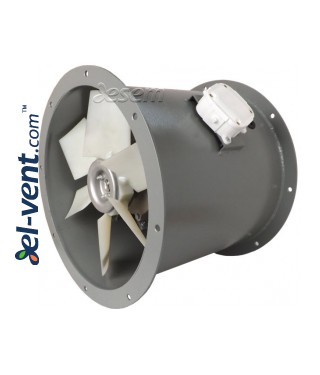

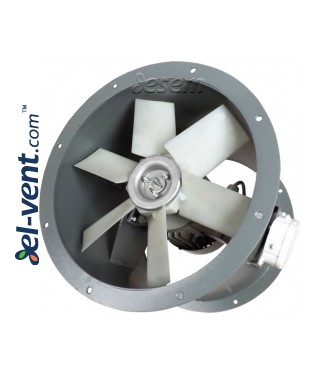

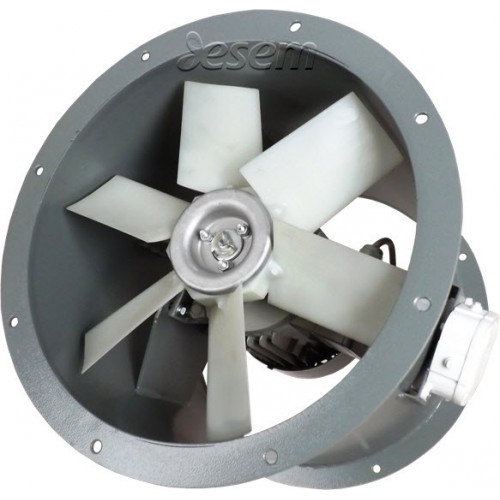

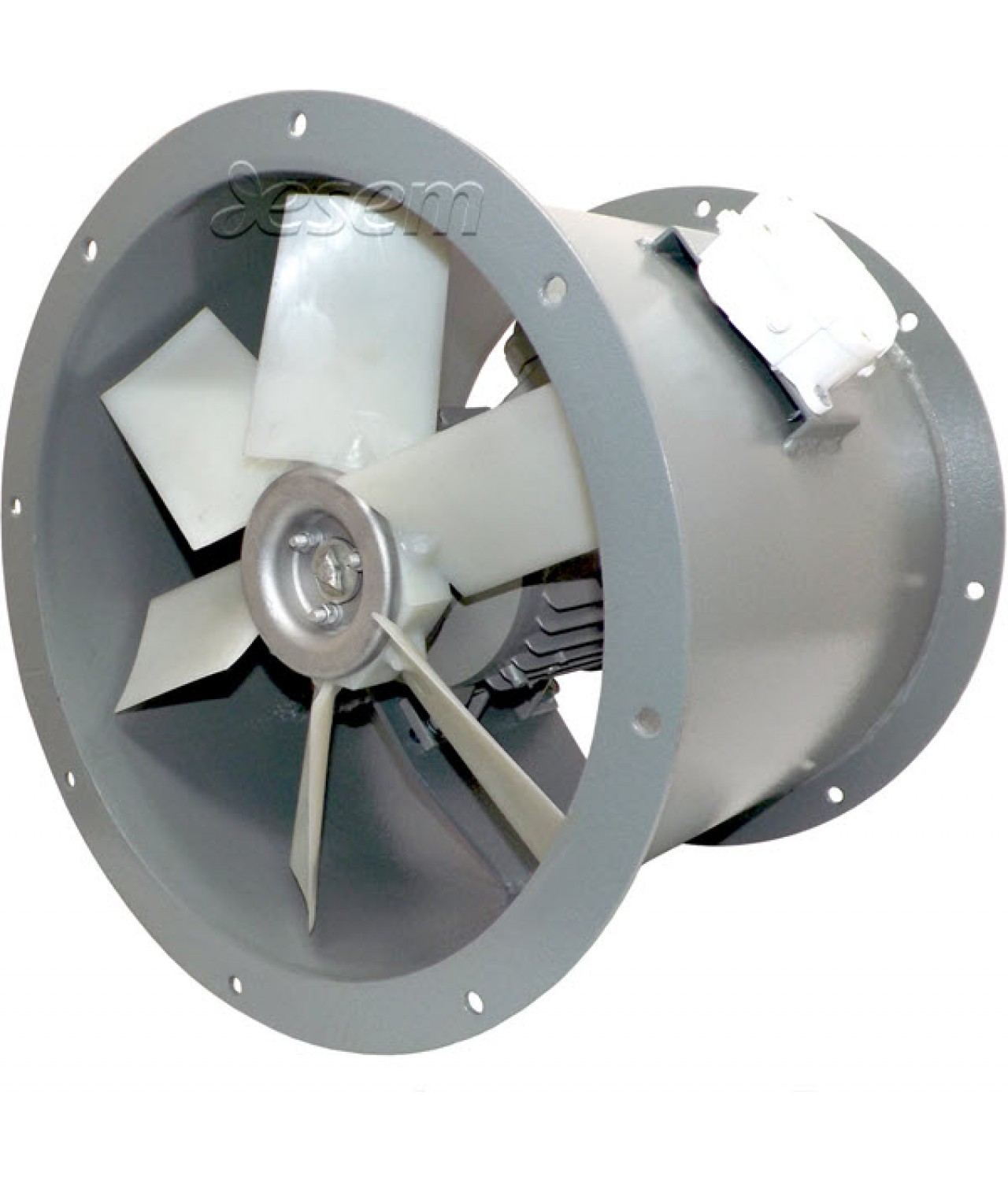

Heavy duty axial duct fans AVOFK ≤27000 m³/h
- AVOFK - Ø250-560 mm axial duct fans for heavy duty, wall or panel mounting to convey air directly outside or through short duct
- body in steel, coated with a corrosion resistant powder coating
- impeller made of plaque resistant, high quality plastic reinforced with carbon fiber
- motor speed can be regulated through industrial controllers
- suitable for domestic, commercial and industrial environments
- max. temperature of extracted air 50 °C
- made in Poland
- 2 years warranty
Brand: ESEM

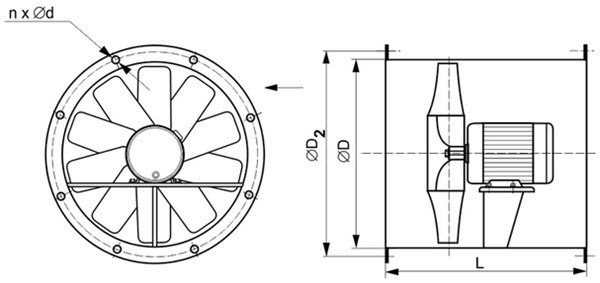

| Code AVOFK |
Ø D
|
Ø D2 | L |
nxØd
|
| 250 | 250 | 275 | 350 | 4x9.5 |
| 315 | 315 | 352 | 380 | 8x9.5 |
| 355 | 355 | 392 | 350 | 8x9.5 |
| 400 | 400 | 438 | 440 | 8x9.5 |
| 450 | 450 | 488 | 440 | 8x9.5 |
| 500 | 500 | 538 | 450 | 8x9.5 |
| 560 | 560 | 600 | 550 | 12x9.5 |
| Code AVOFK | IP class |
Phase
|
Voltage, V at 50 Hz |
Capacity, m³/h
|
Pressure, Pa
|
Power, W | Noise level, dB(A)4m | Speed, min-1 | Weight, kg |
| 250/2/3F | 66 | III | 400 | 2300 | 150 | 250 | 61 | 2800 | 11 |
| 250/2/1F | 66 | I | 230 | 2300 | 150 | 250 | 61 | 2800 | 11 |
| 315/2A/3F | 66 | III | 400 | 3600 | 225 | 370 | 69 | 2800 | 16 |
| 315/2A/1F | 66 | I | 230 | 3600 | 225 | 370 | 69 | 2800 | 16 |
| 315/2B/3F | 66 | III | 400 | 4300 | 230 | 750 | 72 | 2800 | 16 |
| 315/2B/1F | 66 | I | 230 | 4300 | 230 | 750 | 72 | 2800 | 16 |
| 355/2A/3F | 66 | III | 400 | 4800 | 250 | 550 | 74 | 2800 | 22 |
| 355/2A/1F | 55 | I | 230 | 4800 | 250 | 550 | 74 | 2800 | 22 |
| 355/2B/3F | 55 | III | 400 | 6300 | 280 | 1100 | 75 | 2800 | 22 |
| 355/2B/1F | 55 | I | 230 | 6300 | 280 | 1100 | 75 | 2800 | 22 |
| 400/2A/3F | 55 | III | 400 | 7200 | 420 | 1500 | 79 | 2800 | 28 |
| 400/2B/3F | 55 | III | 400 | 10100 | 425 | 2200 | 80 | 2800 | 28 |
| 450/2A/3F | 55 | III | 400 | 12250 | 525 | 2200 | 82 | 2800 | 31 |
| 450/2B/3F | 55 | III | 400 | 14350 | 640 | 4000 | 86 | 2800 | 44 |
| 500/2A/3F | 55 | III | 400 | 15500 | 680 | 3000 | 84 | 2800 | 41 |
| 560/2A/3F | 55 | III | 400 | 1550 | 800 | 4000 | 87 | 2800 | 56 |
| 560/2B/3F | 55 | III | 400 | 20500 | 880 | 5500 | 86 | 2800 | 56 |
| 560/2C/3F | 55 | III | 400 | 27000 | 970 | 7500 | 88 | 2800 | 56 |

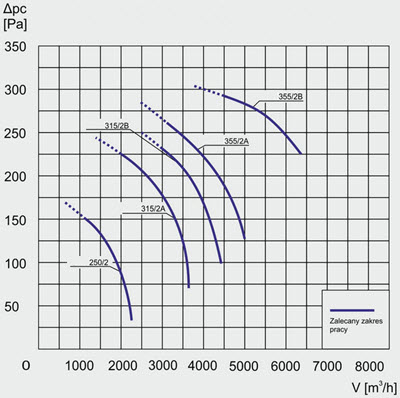

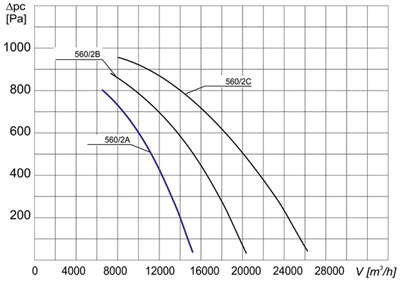

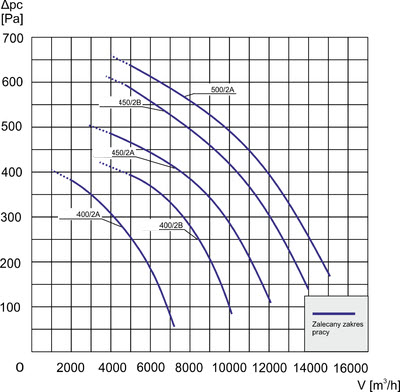

Pressure loss diagrams
