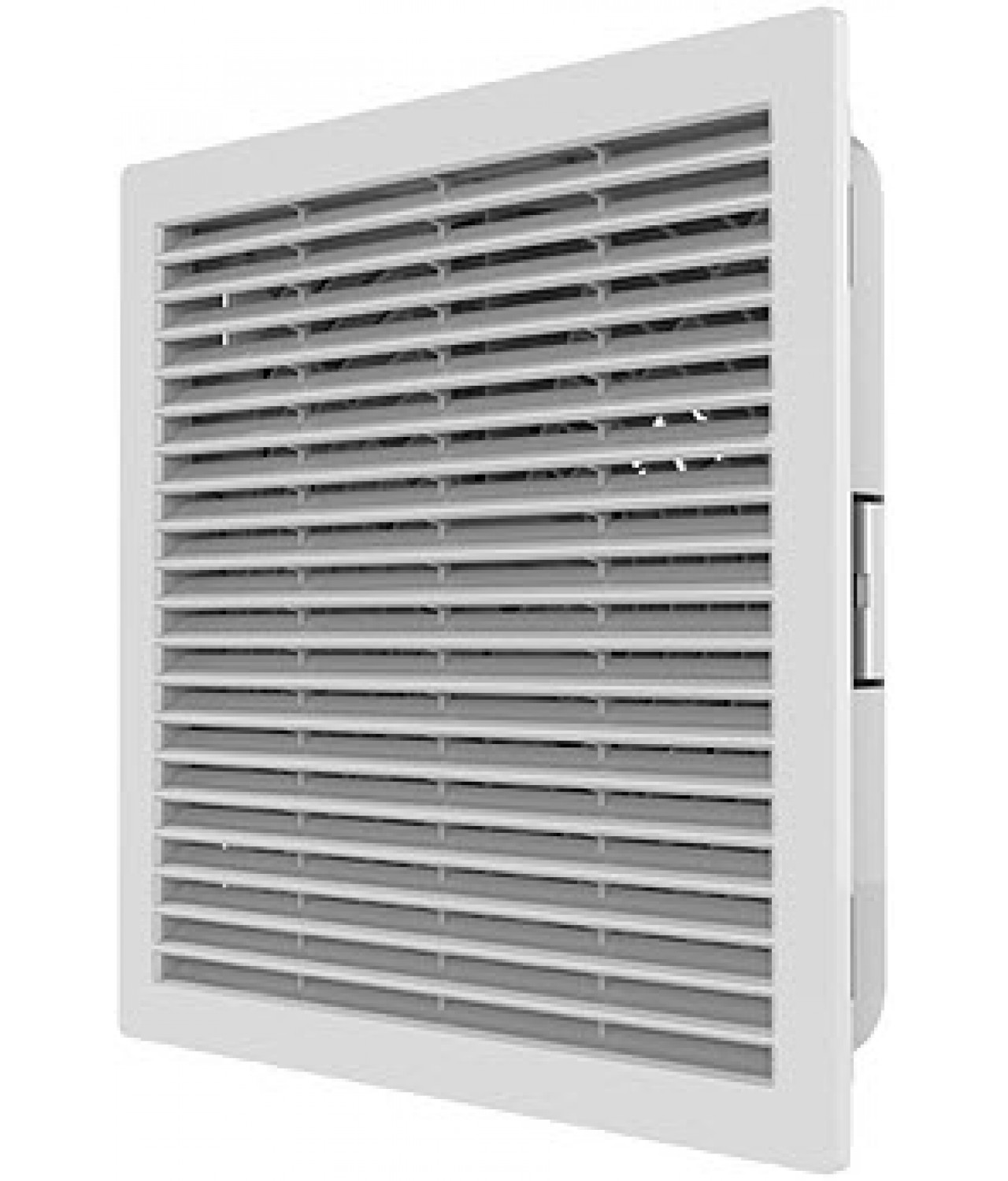

Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m³/h


  1. Ventilation systems ›
  2. Ventilation and conditioning electrical and server cabinets
  3. › T° ventilation
  4. › Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m³/h
Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m3/h Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m3/h - usual / UL type Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m3/h - working principle Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m3/h - ball bearings Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m3/h - Made in Italy

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

Fans for electrical cabinets RCQ 160.25 250x250 mm, 145 m³/h

Send
  • RCQ 160.25 - axial fans supplied with grille and filter
  • usual type - the fan is installed at the bottom of the cabinet, filtering and emitting air, while through the top of the grille, hot air is expelled, creating a through exchange of air, obtaining efficient heat dissipation
  • E type - air extraction fan must be installed up and grille in the bottom - the opposite than standard version
  • UL type - approved by UL Institute in accordance with American Standard
  • low external profile
  • IP54 protection degree (IP44 on request)
  • maximum operating temperature - 70 °C
  • quick and functional assembly of the fan on the electrical cabinet through elastic click hooks and gasket pre-installed on the product
  • possible installation with screws (not provided)
  • body made of ABS self-extinguishing material grey RAL7035
  • ball bearing motor
  • grille in grey RAL7035 (RAL7032, black RAL9005 available on request)
  • easily removable grille to allow quick replacement of the filter
  • slotted external grilles to allow drainage of condensation
  • in accordance with European Standard EN 60529, EN 60335-2-80
  • made in Italy
  • 2 years warranty

Brand: ESEM
Code
A
B
C
D
E
RCQ 160.25 250 250 5.5 105 120





Drilling scheme for fan and grille assembly

Code
A
B
Ø C
RCQ 160.25 223 x 223 230÷234 x 230÷234 4.5





Code
Voltage,
Frequency, Hz
Capacity, m3/h
 Power, W Current, A Noise level, dB(A)3m Weight, kg
with filter without filter
RCQ 160.25, RCQ 160.25 E and RCQ 160.25 UL, RCQ 160.25 E-UL
IP54 12V dc 12 - 120 145 5 0.4 37 0.9
IP54 24V dc 24 - 120 145 5 0.2 37 0.9
IP54 12V ac 12 50/60 125 135 17 2 39 0.9
IP54 24V ac 24 50/60 125 135 15 1 39 0.9
IP54 48V ac 48 50/60 125 135 16 0.5 39 0.9
IP54 110-120V ac 110-120 50/60 125 135 20 0.25 39 1.2
IP54 220-240V ac 220-240 50/60 125 135 20 0.125 39 1.2



Pressure loss diagram
