Fans for electrical cabinets RC 14.32 320x320 mm, 270 m³/h


  1. Ventilation systems ›
  2. Ventilation and conditioning electrical and server cabinets
  3. › T° ventilation
  4. › Fans for electrical cabinets RC 14.32 320x320 mm, 270 m³/h

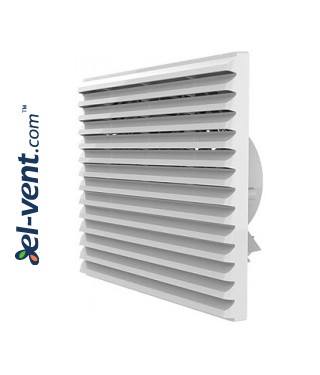

Fans for electrical cabinets RC 14.32 320x320 mm, 270 m3/h Fans for electrical cabinets RC 14.32 320x320 mm, 270 m3/h - usual type Fans for electrical cabinets RC 14.32 320x320 mm, 270 m3/h - working principle Fans for electrical cabinets RC 14.32 320x320 mm, 270 m3/h - ball bearings Fans for electrical cabinets RC 14.32 320x320 mm, 270 m3/h - Made in Italy
Colour:
Select
  • RAL7032 Pebble grey
  • RAL7035 Light grey
  • RAL9005 Jet black
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

Fans for electrical cabinets RC 14.32 320x320 mm, 270 m³/h

Send
  • RCQ 14.32 - axial fans supplied with grille and filter
  • usual type - the fan is installed at the bottom of the cabinet, filtering and emitting air, while through the top of the grille, hot air is expelled, creating a through exchange of air, obtaining efficient heat dissipation
  • E type - air extraction fan must be installed up and grille in the bottom - the opposite than standard version
  • low external profile
  • IP44 or IP54 protection degree
  • maximum operating temperature - 50 °C
  • quick and functional assembly of the fan on the electrical cabinet through elastic click hooks and gasket pre-installed on the product
  • possible installation with screws (provided)
  • body made of ABS self-extinguishing material grey RAL7035
  • ball bearing motor
  • grille in grey RAL7032, RAL7035, black RAL9005
  • easily removable grille to allow quick replacement of the filter
  • slotted external grilles to allow drainage of condensation
  • in accordance with European Standard EN 60529, EN 60335-2-80
  • made in Italy
  • 2 years warranty

Brand: ESEM
Code
A
B
C
D
Ø E
RC 14.32 323 322 34 145 147





Drilling scheme for fan and grille assembly

Code
A
B
C
 D E Ø F G (r)
RCQ 14.32 302 297 287 281 100 3.5 12.5





Code
Voltage, V
Frequency, Hz
Capacity, m3/h
 Power, W Current, A Noise level, dB(A)3m Weight, kg
with filter without filter
RC 14.32
IP44 110-120V 110-120 50/60 180 270 30 0.44 39 1.6
IP44 220-240V 220-240 50/60 180 270 30 0.22 39 1.6
IP54 110-120V 110-120 50/60 150 270 30 0.44 39 1.6
IP54 220-240V 220-240 50/60 150 270 30 0.22 39 1.6



Pressure loss diagram
