Fans for drying grain, fodder, vegetables IVWPR ≤22300 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Fans for grain and wood drying
  4. › Fans for drying grain, fodder, vegetables IVWPR ≤22300 m³/h

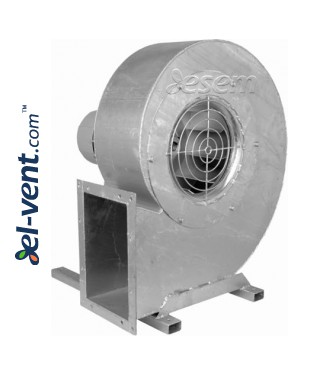

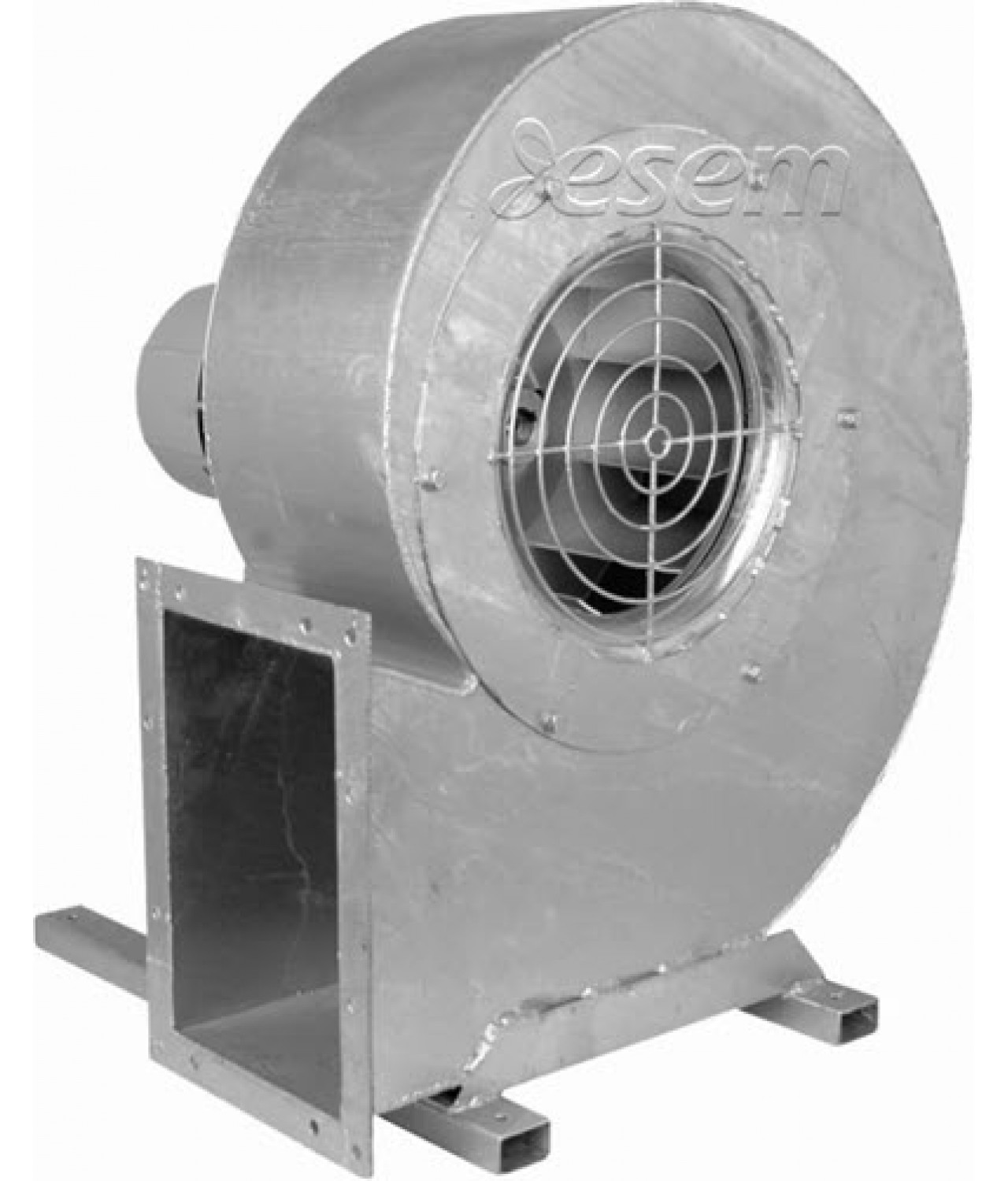

Fans for drying grain, fodder, vegetables IVWPR ≤22300 m³/h Fans for drying grain, fodder, vegetables IVWPR Fans for drying grain, fodder, vegetables IVWPR Zn - galvanized housing and impeller
Price / IVWPR:
Select
  • IVWPR2 1,614.42 € 1,210.81 € (-25%)
  • IVWPR3 2,012.19 € 1,509.15 € (-24%)
  • IVWPR4 2,304.70 € 1,728.52 € (-25%)
  • IVWPR5 2,643.81 € 1,982.86 € (-24%)
  • IVWPR7 3,192.67 € 2,394.51 € (-24%)
  • IVWPR11 4,750.02 € 3,562.52 € (-24%)
  • IVWPR15 6,315.43 € 4,736.57 € (-24%)
  • IVWPR18 6,814.45 € 5,110.85 € (-24%)
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

Fans for drying grain, fodder, vegetables IVWPR ≤22300 m³/h

Send
  • IVWPR - radial fans for drying grain, fodder, vegetables
  • impeller and steel housing coated with polyester by heating, models Zn - housing and impeller made from galvanized steel
  • motor speed can be regulated with a frequency converter
  • air intake with protective grille
  • the air outlet is rectangular as standard, a transition to a round duct can be ordered
  • all three phase motors with protection IP55
  • all fans must be protected by a motor switch against overload
  • max. temperature of extracted air 60 °C
  • made in Poland
  • 2 years warranty
  • standard with LG270 L6 body version:


Brand: ESEM
Code IVWPR
A
B
D
E
 H K L nxØd1 G g F f nxØd2
2 140 315 655 785 480 350 550 2x12 172 - 347 140 8x10
3 200 315 655 785 480 350 550 2x12 232 140 347 140 12x10
4 250 315 735 885 540 500 550 2x12 282 140 347 140 12x10
5 250 315 755 859 515 600 600 2x12 282 140 347 140 12x10
7 315 355 817 965 580 550 650 2x12 347 140 387 140 12x10
11 315 380 935 1085 650 650 675 2x12 347 140 432 140 12x10
15 355 450 1061 1241 740 750 840 2x12 387 140 482 140 12x10
18 355 450 1061 1241 740 750 840 2x12 387 140 482 140 12x10





Code
IVWPR
 IP class
Phases
 Voltage, V at 50 Hz
Capacity, m³/h
 Pressure, Pa Power, W Current, A Speed, min-1 Weight, kg
2 55 III 400 4200 2200 2200 4.6 2800 42
3 55 III 400 6800 2300 3000 6.0 2800 60
4 55 III 400 9000 2500 4000 7.8 2800 92
5 55 III 400 8900 2700 5500 10.6 2800 128
7 55 III 400 13500 3100 7500 14.2 2800 149
11 55 III 400 17400 3900 11000 20.7 2800 151
15 55 III 400 19000 4600 15000 29.4 2800 155
18 55 III 400 22356 5020 18500 32.2 2800 168



Pressure loss diagrams
