EXT - outdoor centrifugal fans ≤217-908 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Kitchen fans
  4. › EXT - outdoor centrifugal fans ≤217-908 m³/h
EXT - outdoor centrifugal fans ≤217-908 m³/h Transformer fan speed controller RVS, ordered separately Transformer fan speed controller RVS, ordered separately Electronic fan speed controller R10, ordered separately Electronic fan speed controller R15, ordered separately EXT - Made in Italy
Price / EXT:
Select
  • EXT 100 AC 485.79 € 340.06 € (-29%)
  • EXT 125 AC 486.31 € 340.42 € (-29%)
  • EXT 150 A AC 469.37 € 328.55 € (-30%)
  • EXT 150 B AC 632.04 € 442.44 € (-29%)
  • EXT 160 A AC 478.01 € 334.60 € (-30%)
  • EXT 160 B AC 608.70 € 426.09 € (-30%)
  • EXT 200 A AC 655.72 € 459.01 € (-29%)
  • EXT 200 B AC 720.74 € 504.51 € (-30%)
Speed controller:
Select
  • RVS 0.5 A, IP42 (2RV4042) 95.95 € 67.17 € (-30%)
  • R10 1.0 A, IP42 (2RV4110) 60.33 € 42.23 € (-30%)
  • R15 1.5 A, IP42 94.74 € 66.32 € (-29%)
  • ESTR-1-10L10 1.0 A, IP54 180.06 € 135.05 € (-24%)
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

EXT - outdoor centrifugal fans ≤217-908 m³/h

Send
  • EXT is a series of powerful ducted centrifugal fans for outdoor installation, with a maximum capacity of 908 m³/h
  • ideal for environments requiring aesthetics or low noise levels
  • wide range of 8 models from Ø100 to 200 mm
  • steel casing with epoxy coating
  • AC motor with ball bearings, backward curved impeller blades
  • thanks to the centrifugal impeller high pressure and extremely high volumes of air through ducts and more complex duct systems
  • installation example:

  • made in Italy
  • 24 months warranty
  • Attention! If you want to install the fan on the cooker hood, you must install special filters before the fan to fully clean the contaminated air. These fans are designed to transport clean air. If the fan is installed without filters, the fan is not covered by the warranty.
  • recommended speed controllers (more precise control with a transformer speed controller)
RVS ESTR(S)-1-10L10 R10 R15
Transformatorinis ventiliatoriaus greičių reguliatorius RVS Elektroninis ventiliatoriaus greičių reguliatorius R10 Elektroninis ventiliatoriaus greičių reguliatorius R15
  • 5 speeds
  • 5-stage speed controller (fitted with transformer)
  • on/off switch
  • IP42 protection
  • maximum load: 100 W (0.5 A)
  • supply voltage: 230 V-50/60 Hz
  • dimensions: 118 x 118 x 58 mm
  • weight: 0.7 kg
 Description

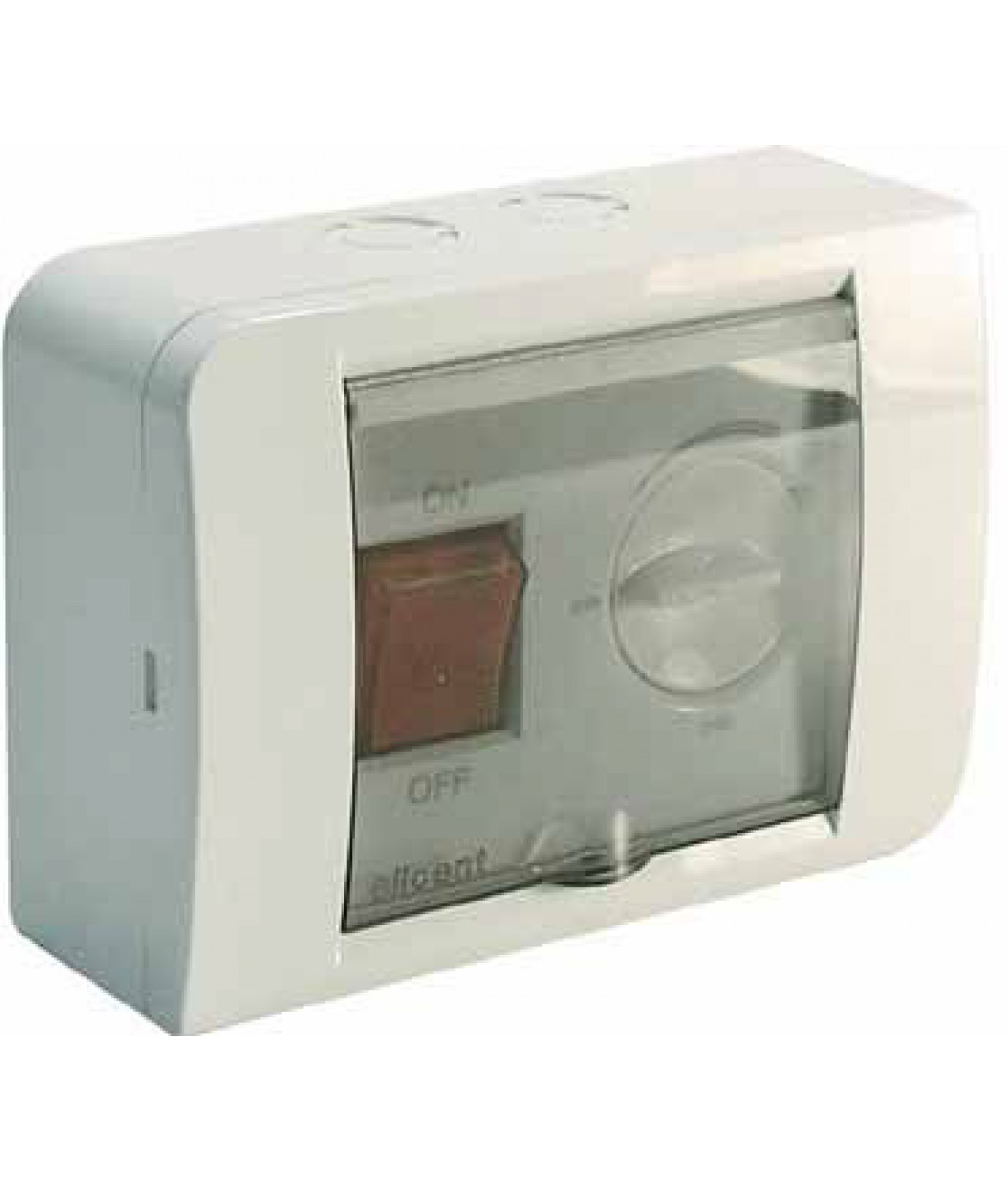

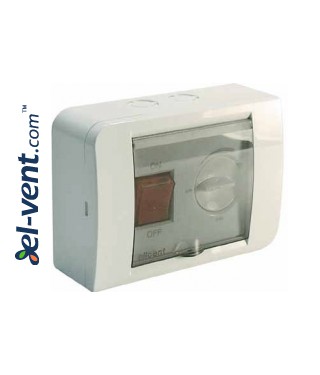

  • infinitely variable electronic speed controller by potentiometer
  • new design with cover
  • suitable for surface and built-in application
  • ease of connection by the means of removable terminals
  • external trimmer for the adjustment of the fan minimum speed
  • protection fuse
  • preset holes for surface and recessed cable entry
  • single-phase 230V – 50 Hz
  • max. load 1A
  • protection IP42
  • weight 0.5 Kg
  • dimensions 110x80x42

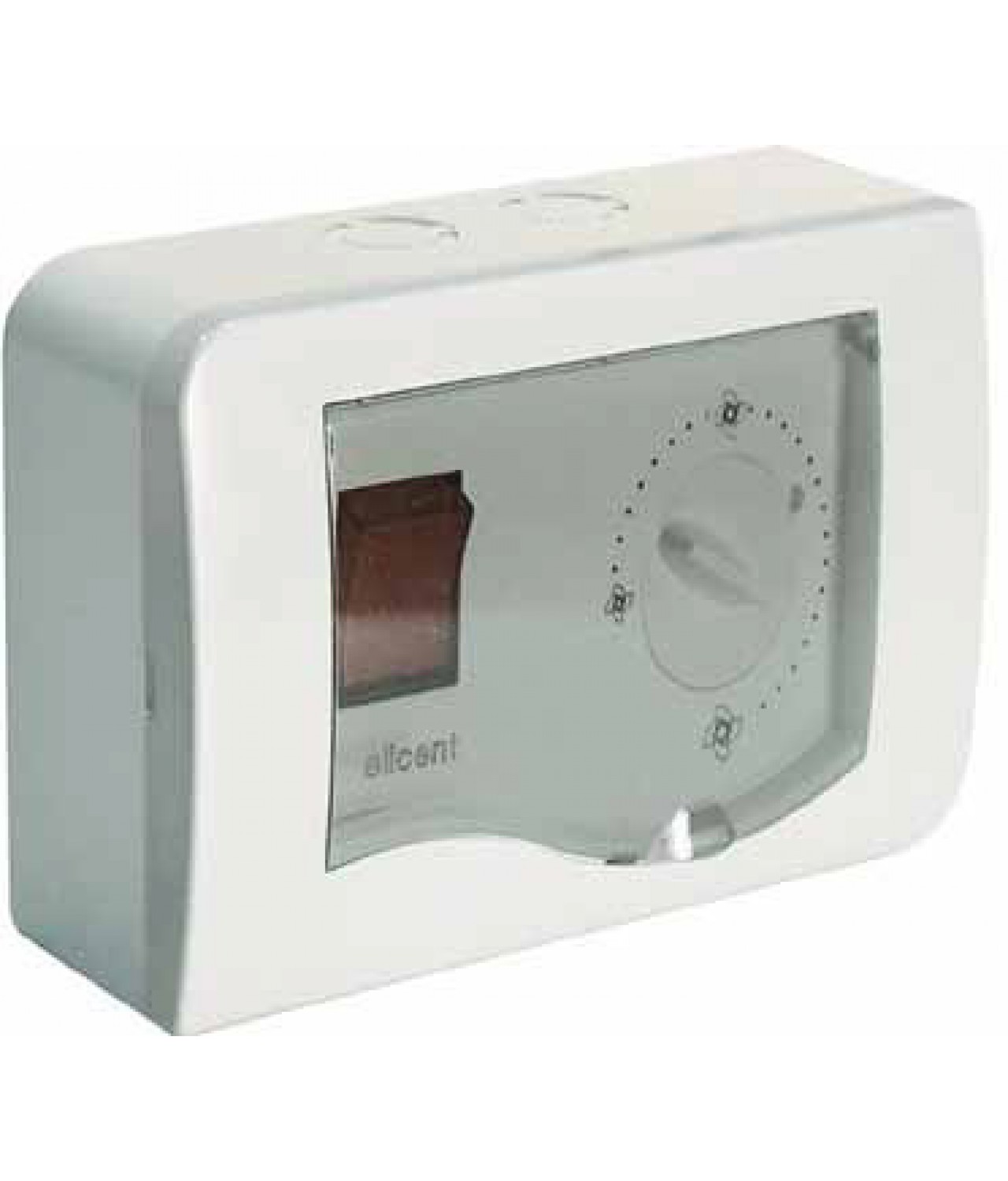

  • infinitely variable electronic speed controller by potentiometer
  • new design with cover
  • suitable for surface and built-in application
  • ease of connection by the means of removable terminals
  • external trimmer for the adjustment of the fan minimum speed
  • protection fuse
  • preset holes for surface and recessed cable entry
  • single-phase 230V – 50 Hz
  • max. load 1.5A
  • protection IP42
  • weight 0.5 Kg
  • dimensions 110x80x42

EXT 100-125-150A-160A



EXT 100-125-150A-160A

EXT 150B-160B-200A/B

EXT 100-125-150A-160A

EXT 150B-160B-200A/B

EXT 100-125-150A-160A

EXT 150B-160B-200A/B

Brand: ELICENT
Code A B C D ØE
EXT 100 260 355 92 131 98
EXT 125 260 355 92 131 122
EXT 150 A 260 355 92 131 148
EXT 150 B 360 450 116 155 148
EXT 160 A 260 355 92 131 158
EXT 160 B 360 450 116 155 157
EXT 200 A/B 360 450 116 155 198



Code Motor m³/h l/s Pa W A dB(A)* kg
EXT 100 AC 217 60 268 28 0.13 44 4.8
EXT 125 AC 269 75 259 28 0.13 44 4.8
EXT 150 A AC 426 118 322 59 0.24 56 5
EXT 150 B AC 708 197 467 110 0.48 59 7.4
EXT 160 A AC 433 120 309 56 0.24 56 5
EXT 160 B AC 755 210 480 120 0.53 61 7.4
EXT 200 A AC 793 220 486 120 0.53 61 7.4
EXT 200 B AC 908 252 609 158 0.70 65 7.4

*Lp(A) measured at 3 m in open field 230V-50 Hz
