Duct fan TURBO
| Price / Fan: |
Select
|
| Price / Backdraft damper: |
Select
|
Qty.:
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item
Duct fan TURBO
- TURBO - duct fans with increased power
- can be mounted in any position
- with slide bearing motor
- maximum operating temperature - 50 °C
- made in Turkey
- 2 years warranty
Brand: ESEM
|
Code
|
A
|
B
|
C
|
D |
|
TURBO100 (YUF)
|
100
|
103 | 80 | 30 |
| TURBO125 (YUF) | 125 | 128 | 87 | 30 |
| TURBO150 (YUF) | 150 | 153 | 101 | 35 |
|
Code
|
Voltage, V
|
Frequency, Hz
|
Power, W
|
Capacity, m³/h
|
Noise level, dB
|
Motor protection class IP |
|
TURBO100 (YUF)
|
230
|
50
|
14
|
107
|
35
|
25
|
| TURBO125 (YUF) | 230 | 50 | 18 | 190 | 36 | 25 |
| TURBO150 (YUF) | 230 | 50 | 22 | 300 | 38 | 25 |

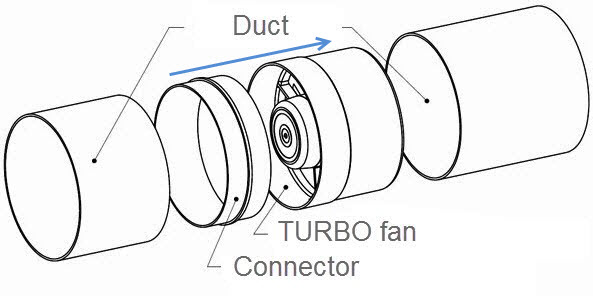

Installation
Connection to the power supply:
Standard models
N - null
L - phase
Pressure loss
