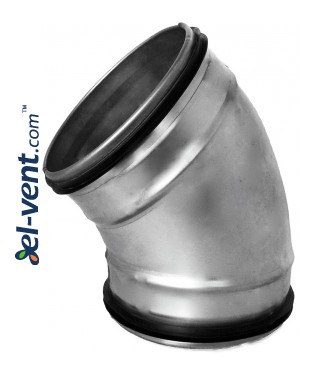

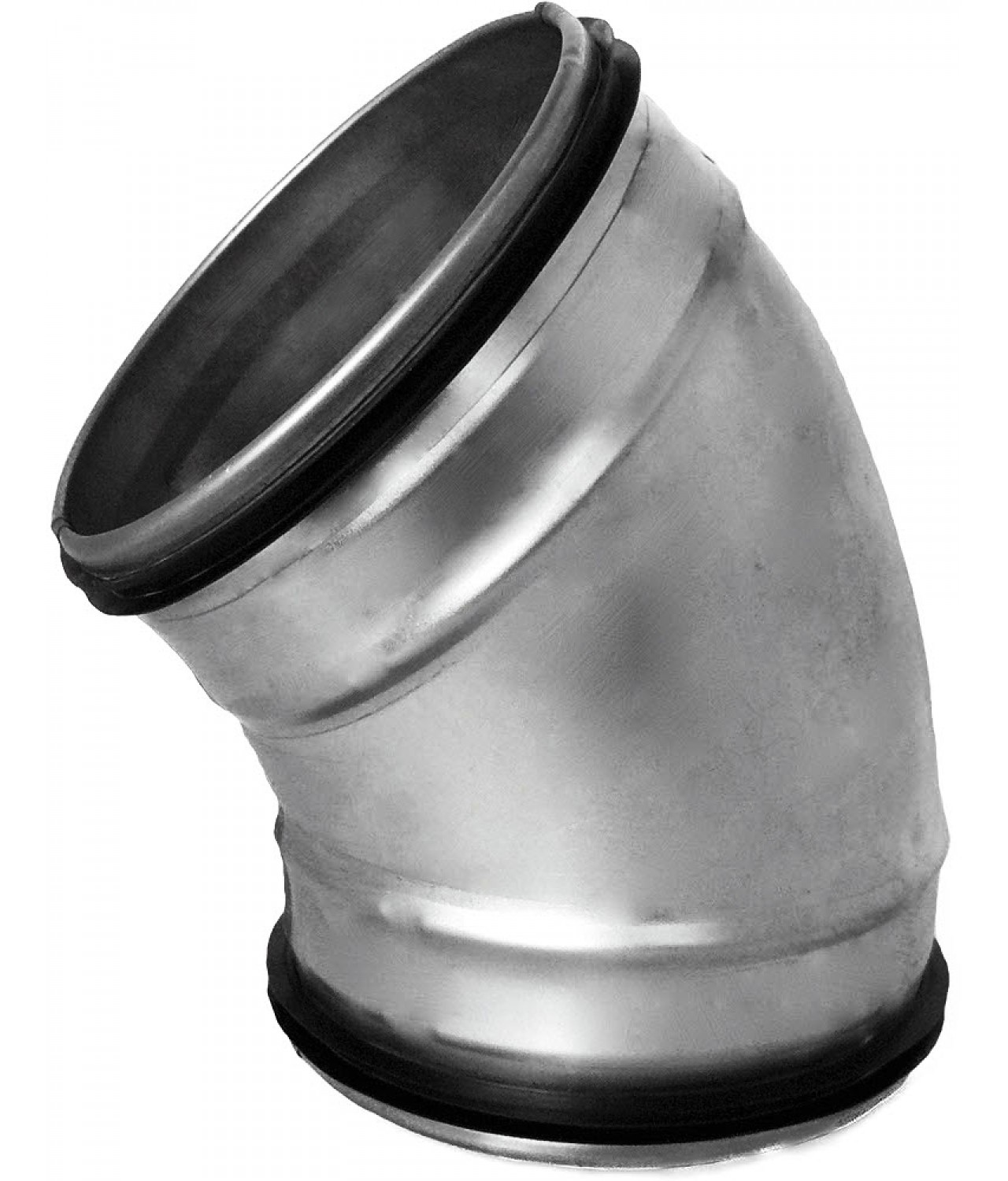

Duct elbows with gaskets

Name: Duct elbows with gaskets
Brand: ESEM
SKU: AG
Price: 9.23 EUR
Availability: InStock
Rating: 5 (1 reviews)

Price / Ø / °:

Select

Ø80 mm 15° 13.19 € 9.23 € (-30%)
Ø100 mm 15° 12.79 € 8.95 € (-29%)
Ø125 mm 15° 14.57 € 10.20 € (-29%)
Ø160 mm 15° 17.70 € 12.39 € (-30%)
Ø200 mm 15° (S) 20.52 € 14.36 € (-30%)
Ø250 mm 15° (S) 21.34 € 14.94 € (-29%)
Ø315 mm 15° (S) 27.39 € 19.18 € (-29%)
Ø80 mm 30° 10.42 € 7.30 € (-29%)
Ø100 mm 30° 10.13 € 7.09 € (-29%)
Ø125 mm 30° 11.59 € 8.11 € (-30%)
Ø160 mm 30° 15.21 € 10.65 € (-29%)
Ø200 mm 30° 20.23 € 14.16 € (-30%)
Ø250 mm 30° (S) 21.30 € 14.91 € (-30%)
Ø315 mm 30° (S) 27.39 € 19.18 € (-29%)
Ø80 mm 45° 7.56 € 3.78 € (-50%)
Ø100 mm 45° 7.22 € 3.62 € (-49%)
Ø125 mm 45° 8.19 € 4.09 € (-50%)
Ø160 mm 45° 11.13 € 5.57 € (-50%)
Ø200 mm 45° 13.81 € 6.91 € (-49%)
Ø250 mm 45° (S) 20.62 € 10.31 € (-50%)
Ø315 mm 45° (S) 26.46 € 13.24 € (-49%)
Ø400 mm 45° (S) 37.66 € 18.83 € (-50%)
Ø500 mm 45° (S) 64.00 € 32.00 € (-49%)
Ø80 mm 60° 13.26 € 9.28 € (-30%)
Ø100 mm 60° 13.44 € 9.41 € (-29%)
Ø125 mm 60° 16.17 € 11.31 € (-30%)
Ø160 mm 60° 24.88 € 17.41 € (-30%)
Ø200 mm 60° (S) 25.49 € 17.85 € (-29%)
Ø250 mm 60° (S) 28.40 € 19.88 € (-29%)
Ø315 mm 60° (S) 35.65 € 24.95 € (-30%)
Ø80 mm 90° 8.75 € 4.38 € (-49%)
Ø100 mm 90° 7.77 € 3.88 € (-50%)
Ø125 mm 90° 9.44 € 4.72 € (-50%)
Ø160 mm 90° 14.10 € 7.04 € (-50%)
Ø200 mm 90° 20.95 € 10.47 € (-50%)
Ø250 mm 90° (S) 24.74 € 12.38 € (-49%)
Ø315 mm 90° (S) 34.12 € 17.06 € (-50%)
Ø400 mm 90° (S) 55.13 € 27.56 € (-50%)
Ø500 mm 90° (S) 87.92 € 43.96 € (-50%)

Qty.:

EU shipping 14 working days, non EU 21 working days

Ask a question about this item

Duct elbows with gaskets

Send

Characteristics Dimensions, mm Certificates

made from galvanized steel
to connect ventilation duct systems
with a rubber seal
ducts larger than Ø400 mm only by special order

Brand: ESEM

Code	Ød1	L 15°	L 30°	L 45°	L 60°	L 90°
AG080/	80	13	27	41	64	100
AG100/	100	13	27	41	64	100
AG125/	125	16	33	52	72	125
AG160/	160	21	43	66	92	160
AG200/	200	26	54	83	115	200
AGS200/	200	40	55	83	115	200
AGS250/	250	45	67	104	144	250
AGS315/	315	50	84	130	182	315
AGS400/	400	53	107	162	231	400
AGS500/	500	68	135	204	290	500

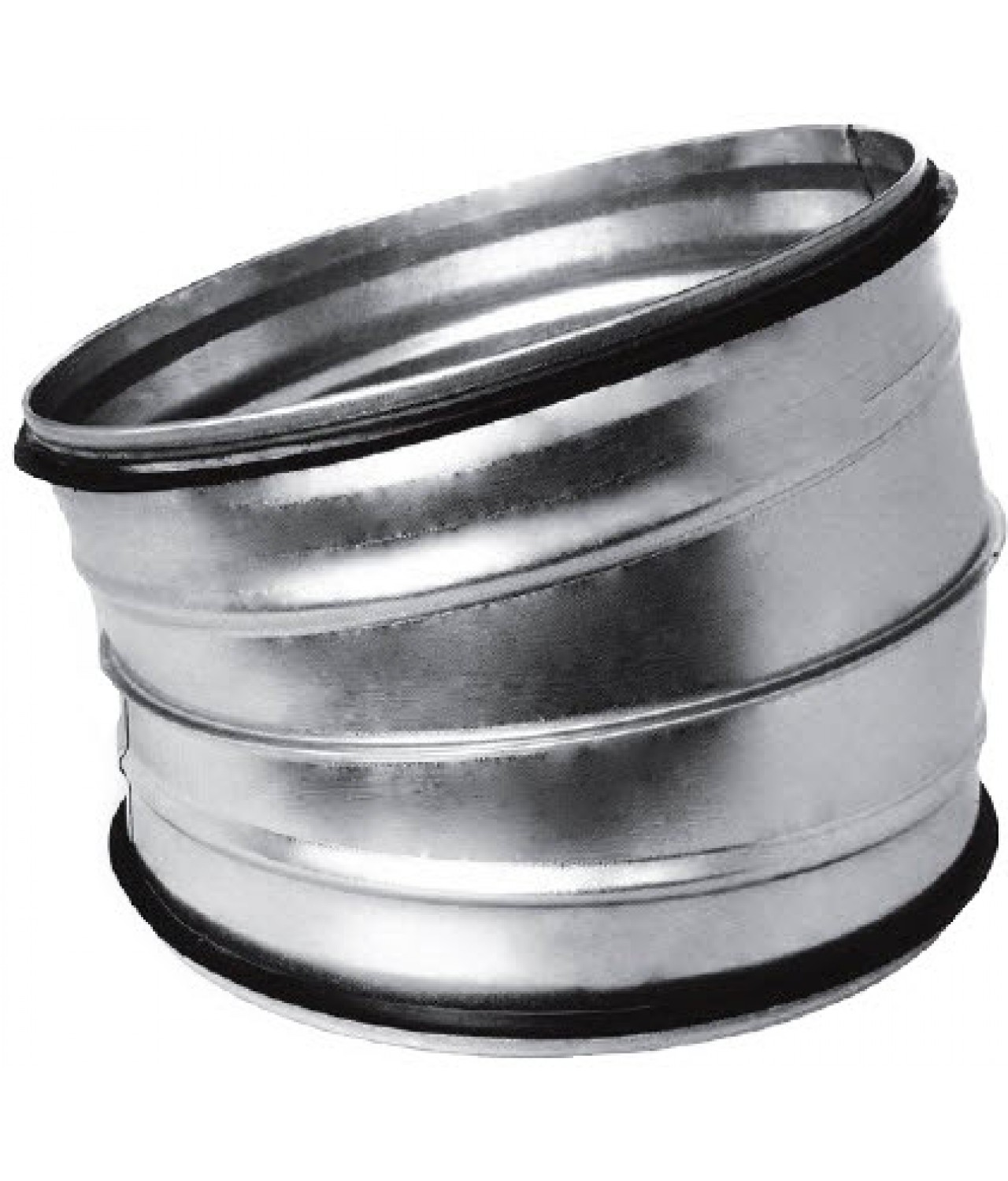

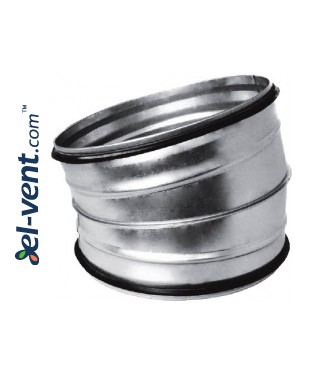

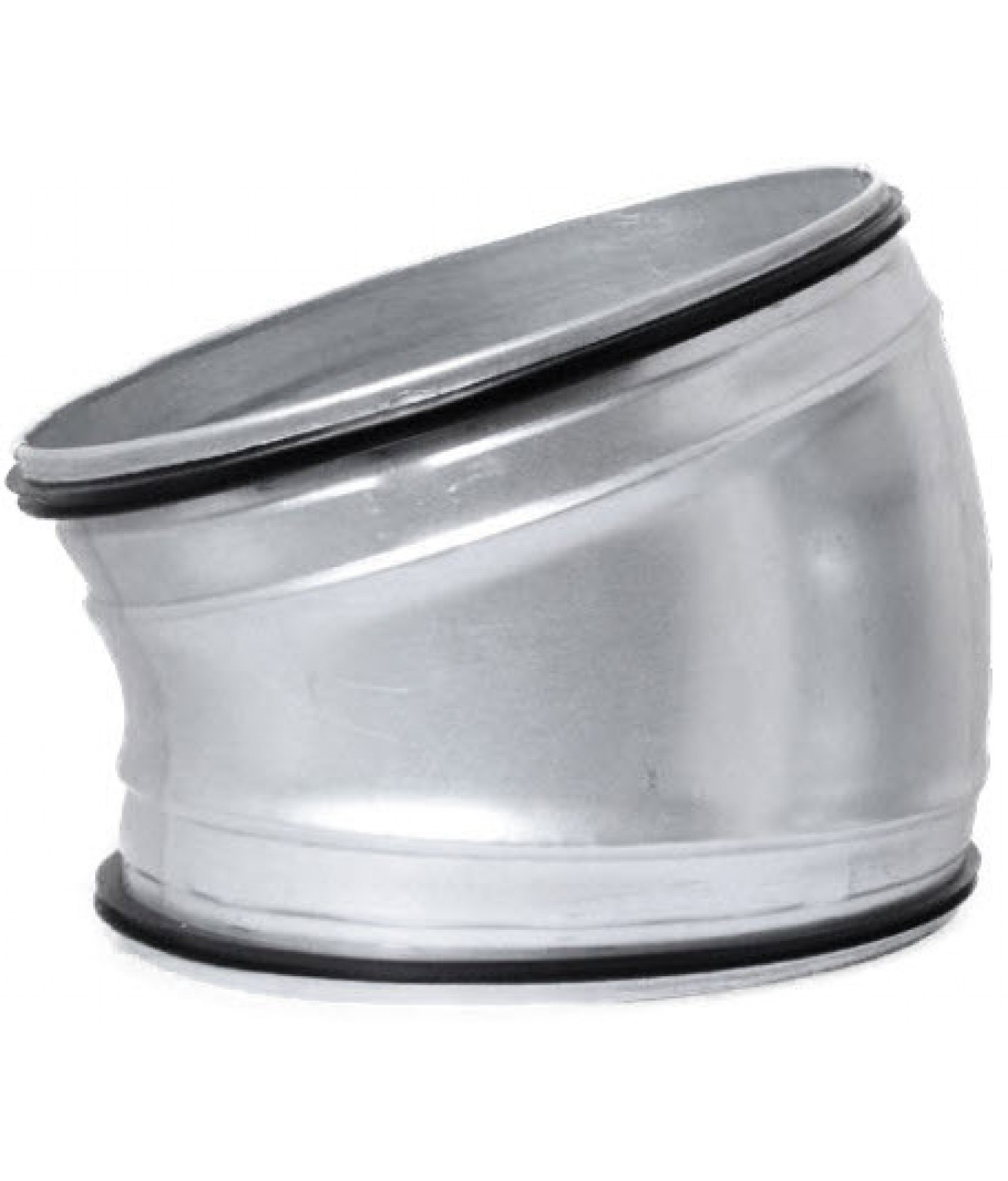

AG 15°	AGS 15°

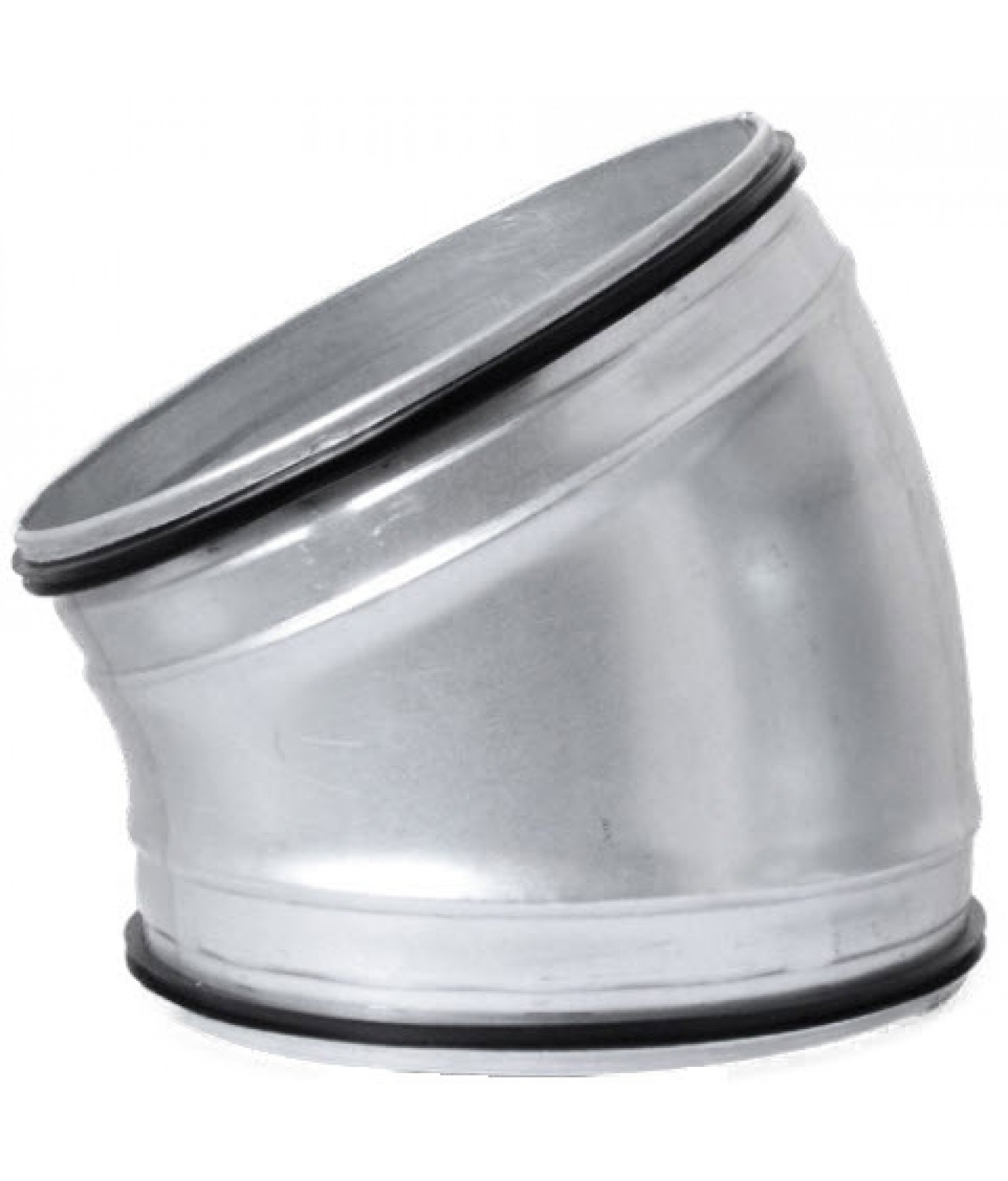

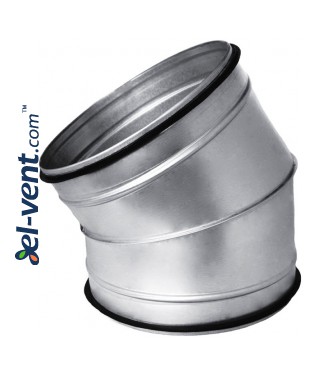

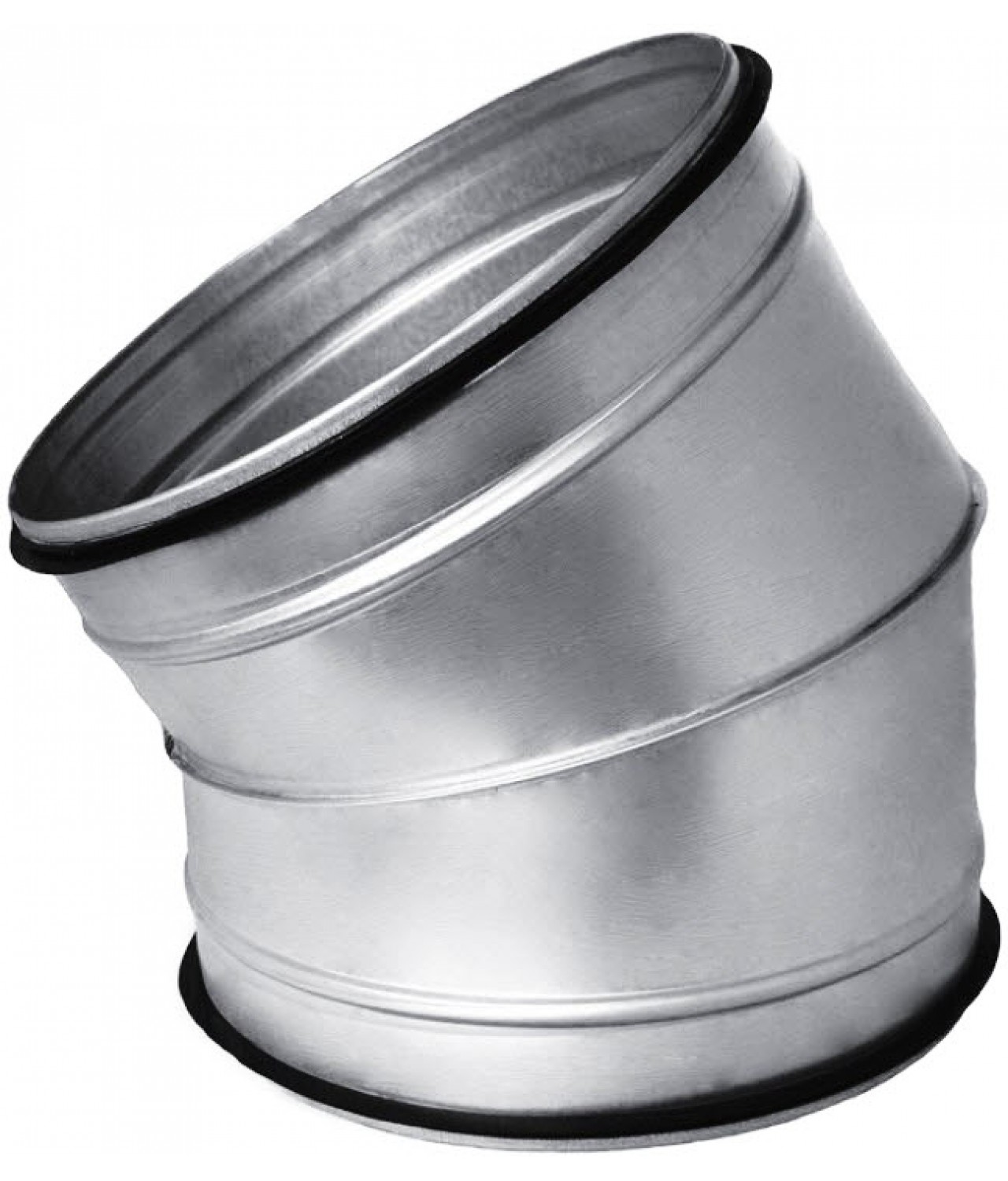

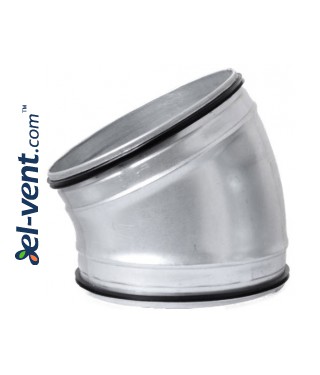

AG 30°	AGS 30°

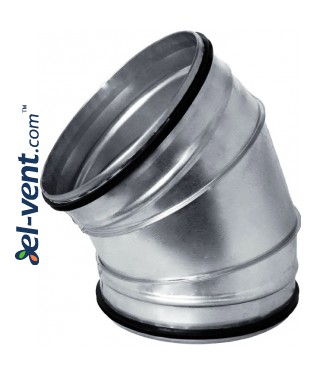

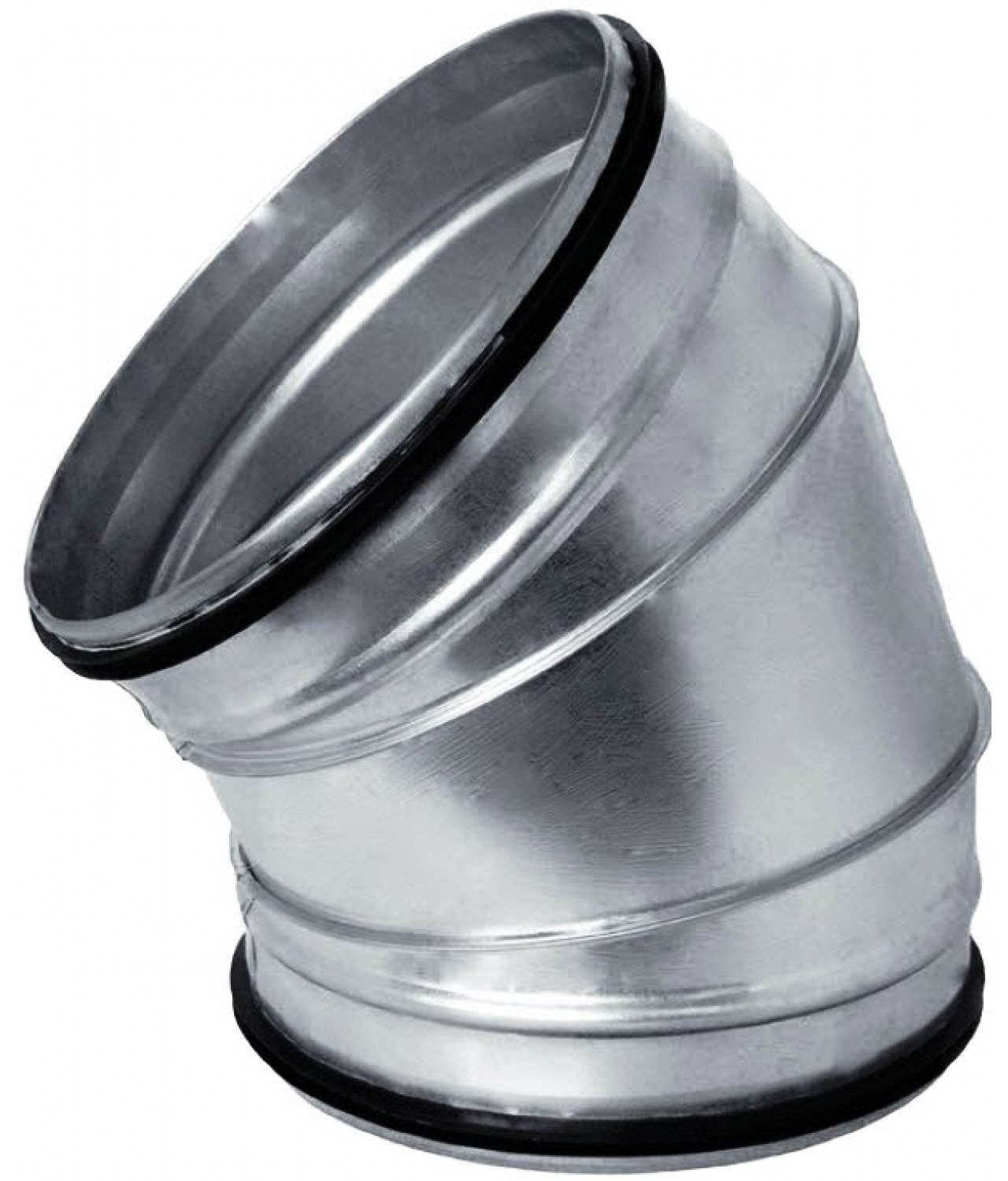

AG 45°	AGS 45°

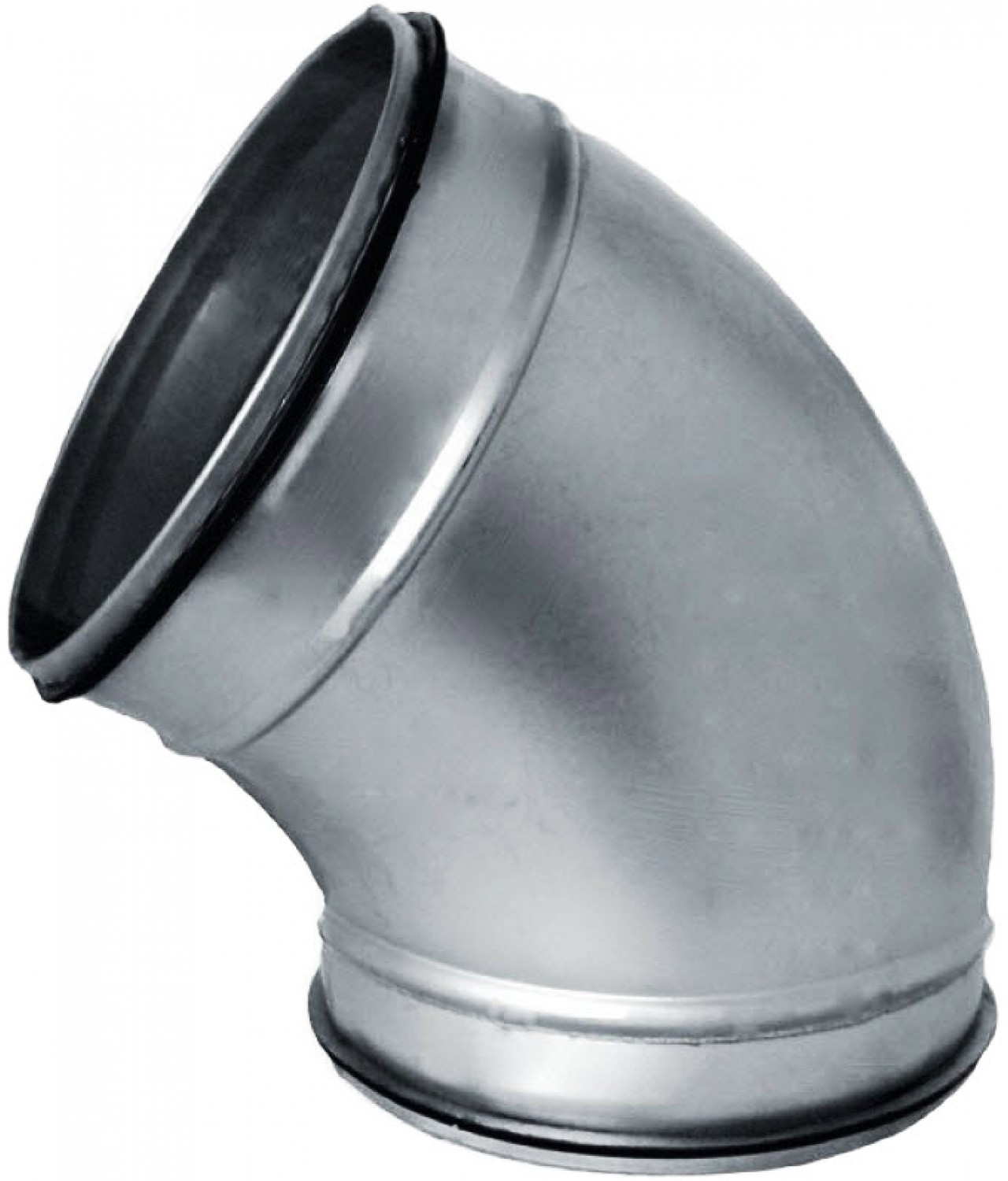

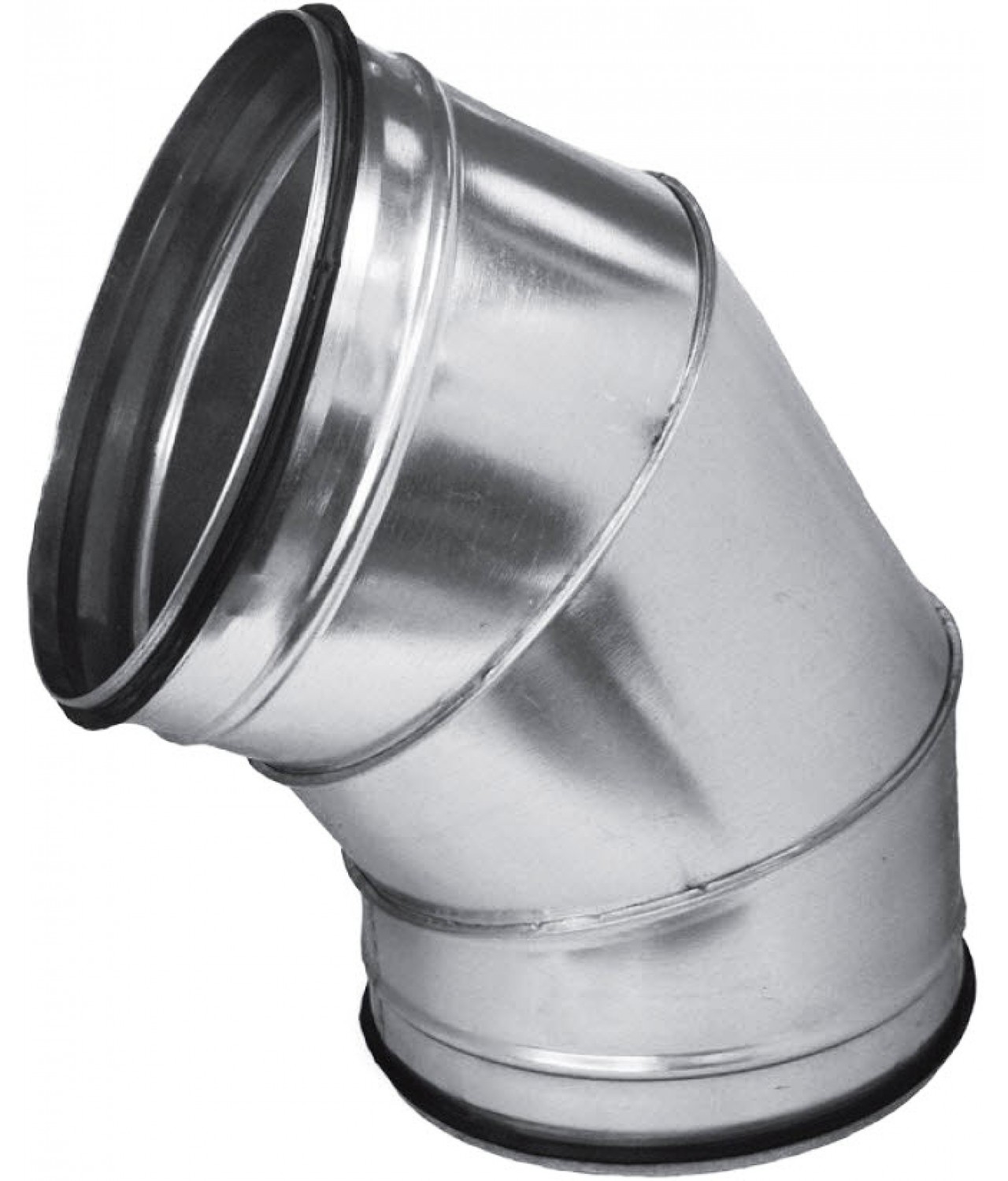

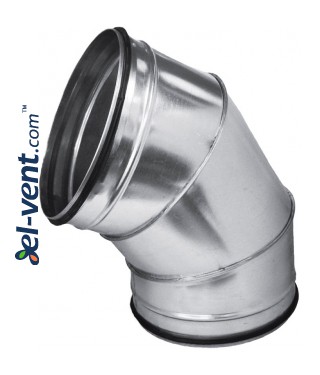

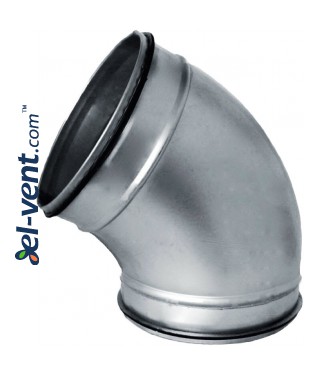

AG 60°	AGS 60°

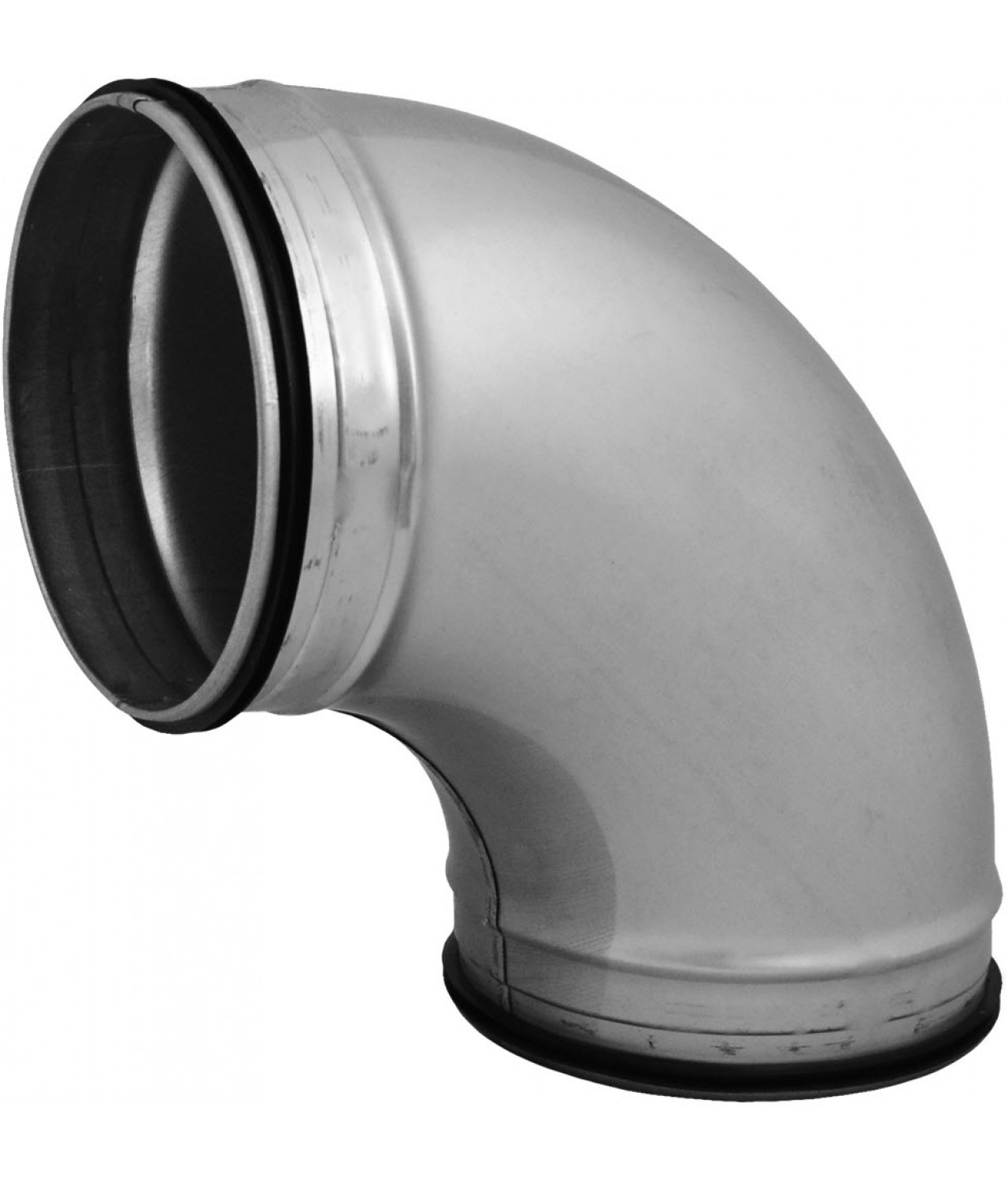

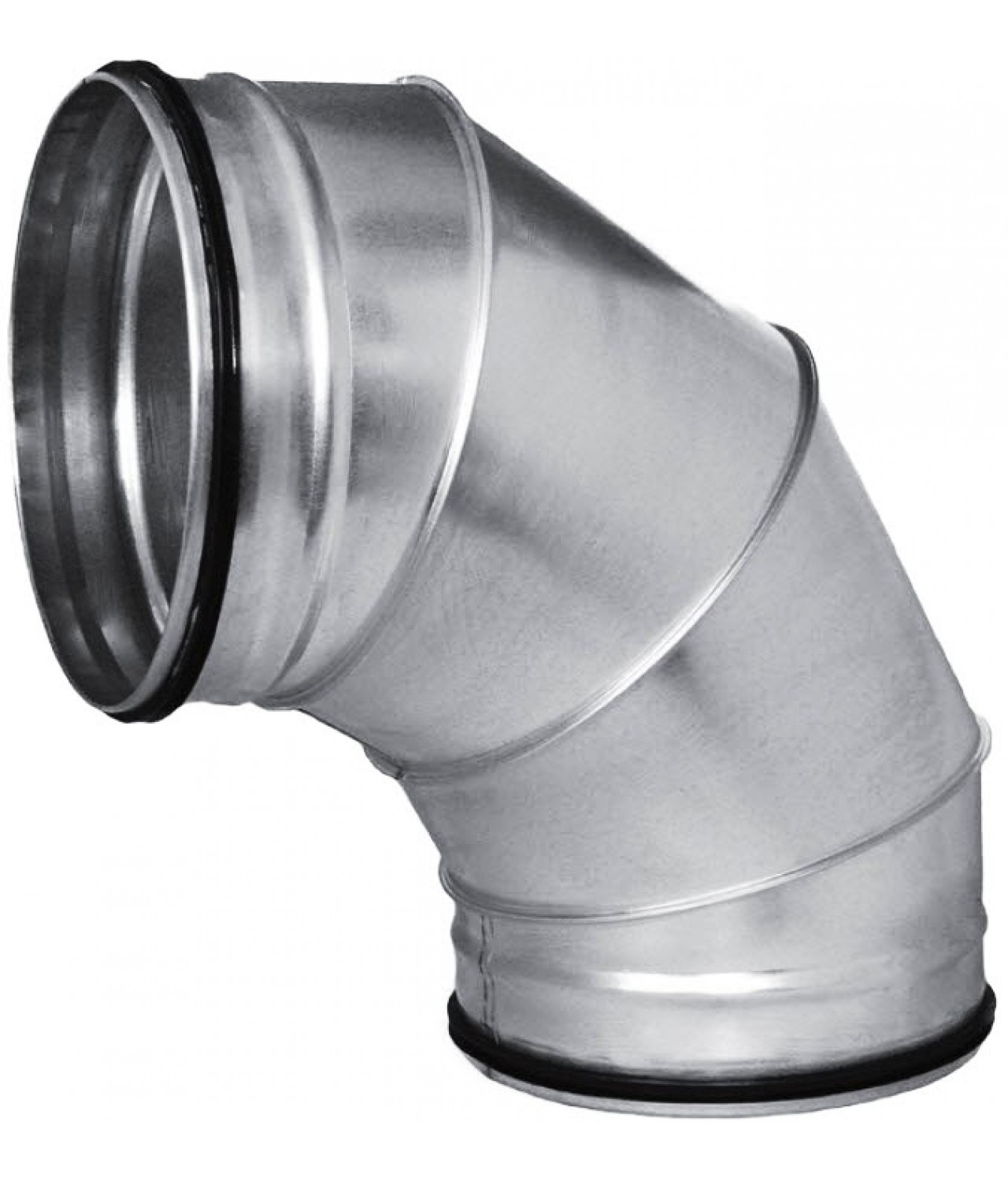

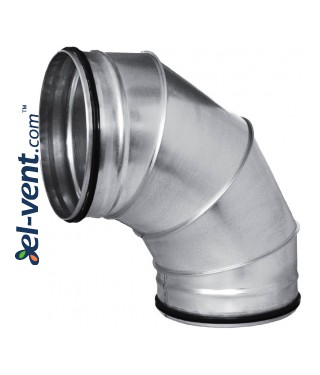

AG 90°	AGS 90°
