Centrifugal fans IVPFPK ≤22356 m³/h

Name: Centrifugal fans IVPFPK ≤22356 m³/h
Brand: ESEM
SKU: IVPFPK
Price: 844.98 EUR
Availability: InStock
Rating: 5 (1 reviews)

Price / IVPFPK:

Select

160/4/1F 1,126.63 € 844.98 € (-24%)
160/4/3F 1,126.63 € 844.98 € (-24%)
200/4/1F 1,249.58 € 937.19 € (-24%)
200/4/3F 1,249.58 € 937.19 € (-24%)
250/4/1F 1,343.61 € 1,007.70 € (-25%)
250/4/3F 1,343.61 € 1,007.70 € (-25%)
315/4/1F 1,548.52 € 1,161.39 € (-24%)
315/4/3F 1,548.52 € 1,161.39 € (-24%)
315/4D/1F 1,724.50 € 1,293.38 € (-24%)
315/4D/3F 1,724.50 € 1,293.38 € (-24%)
355/4/1F 2,236.39 € 1,677.29 € (-25%)
355/4/3F 2,236.39 € 1,677.29 € (-25%)
400/4/3F 2,785.25 € 2,088.93 € (-25%)
450/4/3F 2,970.08 € 2,227.55 € (-25%)
500/4/3F 3,446.60 € 2,584.95 € (-25%)
500/4D/3F 3,685.27 € 2,763.95 € (-24%)
560/4/3F 4,750.02 € 3,562.52 € (-24%)
560/4D/3F 5,401.74 € 4,051.31 € (-24%)
560/6/3F 5,401.74 € 4,051.31 € (-24%)
160/2/1F 1,119.41 € 839.55 € (-25%)
160/2/3F 1,119.41 € 839.55 € (-25%)
160/2D/1F 1,192.53 € 894.40 € (-25%)
160/2D/3F 1,192.53 € 894.40 € (-25%)
180/2/1F 1,309.85 € 982.39 € (-25%)
180/2/3F 1,309.85 € 982.39 € (-25%)
200/2/3F 1,512.35 € 1,134.27 € (-25%)
250/2/3F 1,747.81 € 1,310.85 € (-25%)
315/2/3F 2,059.60 € 1,544.70 € (-25%)
315/2D/3F 2,315.14 € 1,736.36 € (-24%)
355/2/3F 2,663.10 € 1,997.32 € (-25%)
400/2/3F 3,586.43 € 2,689.82 € (-25%)
450/2/3F 4,998.34 € 3,748.75 € (-25%)
500/2/3F 6,967.94 € 5,225.95 € (-25%)

Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Centrifugal fans IVPFPK ≤22356 m³/h

Send

Characteristics Dimensions, mm Technical data

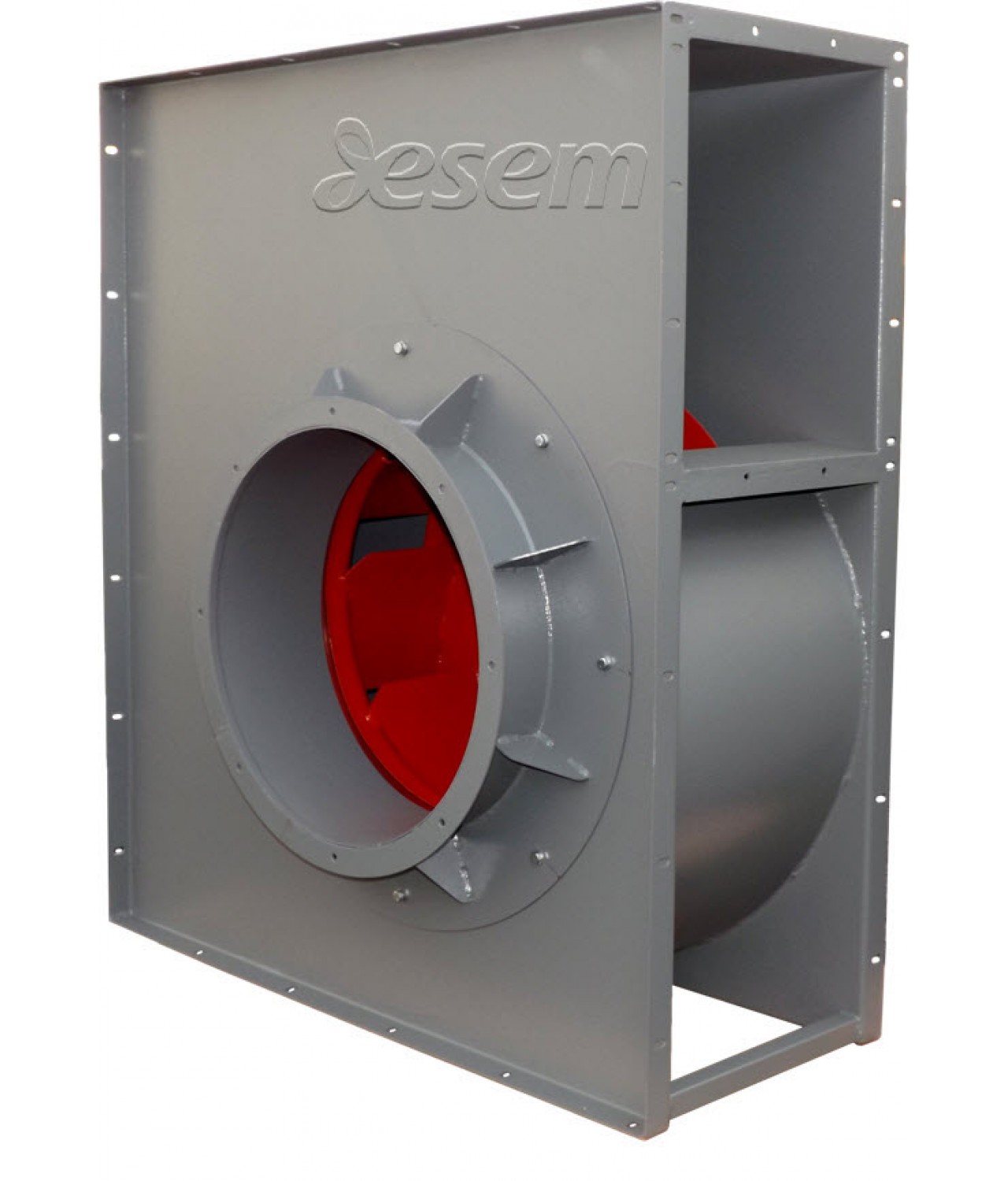

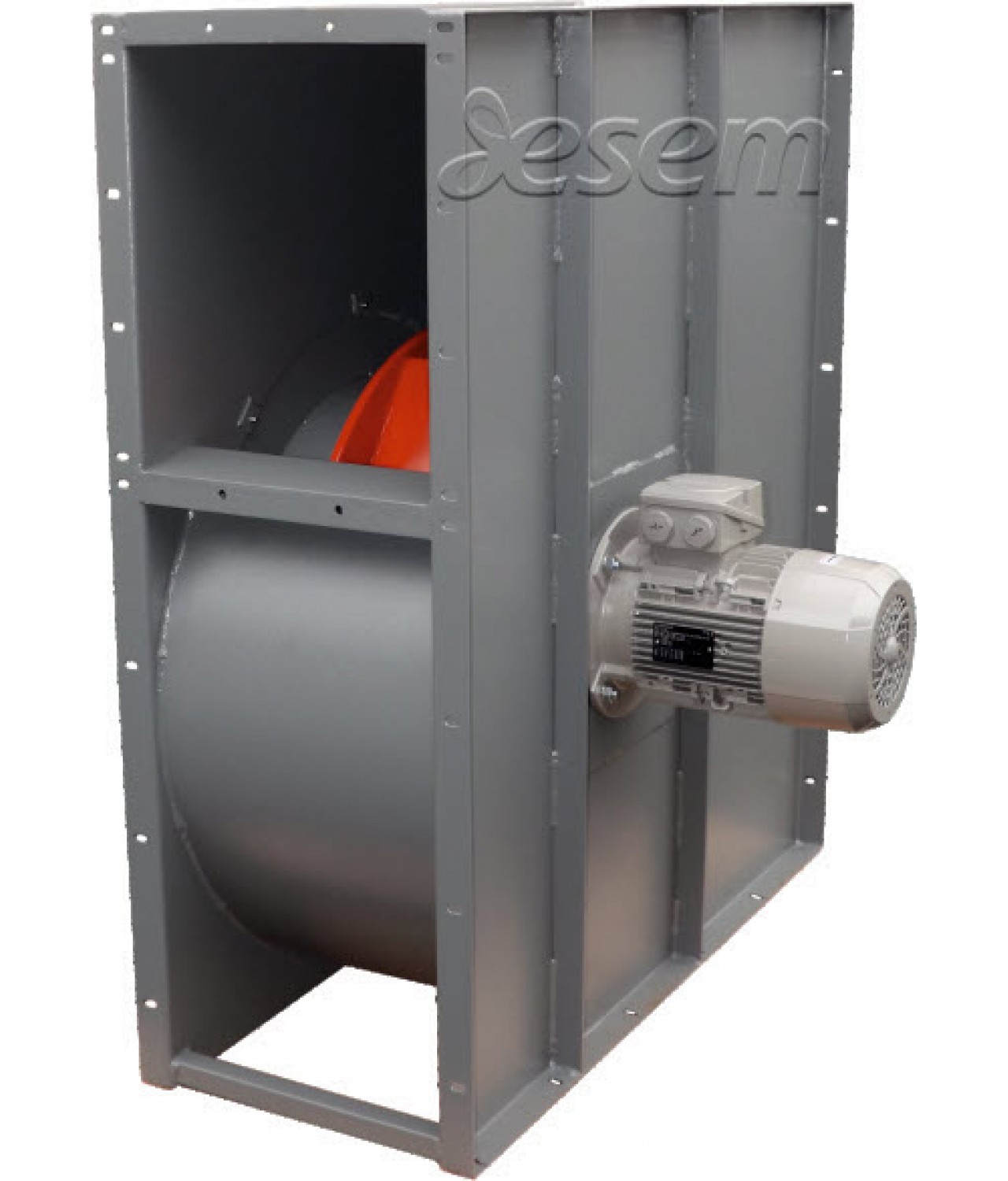

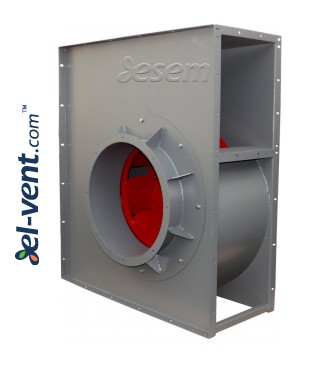

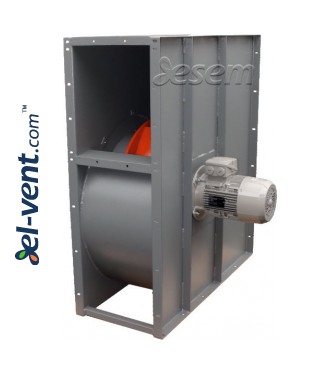

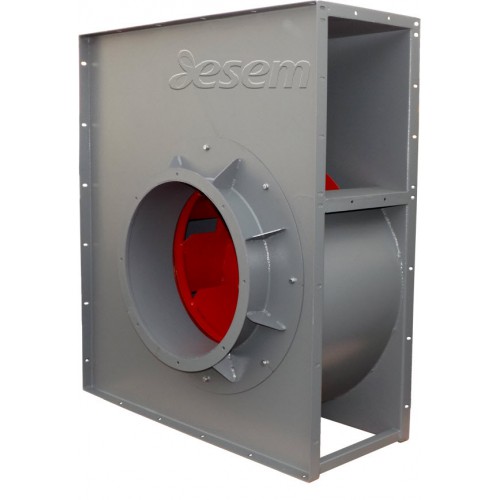

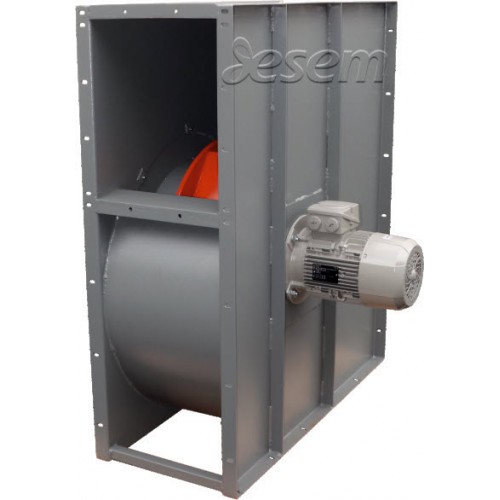

IVPFPK - centrifugal duct fans to extract air and fumes through medium/long sized ducts
suitable for application on machines where a forced ventilation or air suction is required
working temperature -15 - +40 °C
temperature of extracted air -25 - +60 °C
steel plated frame protected by an epoxy-based anticorrosive paint and galvanized steel centrifugal impeller statically and dynamically balanced
suitable to overcome high pressure losses due to ducts resistance
supplied with ball bearing motor IP55 protected
made in Poland
2 years warranty

Standard product supplied with impeller housing position LG 90 (L2), different positions available on request

Brand: ESEM

Code IVPFPK	A	B	C	D	E	H	K	S	R	M	N	nxØd	G	P	F
160/2	160	150	150	360	430	175	150	120	60	160	185	4x7	194	-	180
160/2D	200	160	165	400	470	195	170	140	70	160	185	4x7	234	140	190
180/2	200	200	200	480	560	230	200	170	85	160	205	4x7	234	140	230
160/4	200	200	200	480	560	230	200	170	85	160	185	4x7	234	140	230
200	200	200	225	500	600	245	210	110	110	200	225	4x9.5	236	140	230
250	200	250	240	550	670	275	230	100	100	250	275	4x9.5	236	140	280
315	250	315	282	700	820	344	300	125	125	315	352	8x9.5	286	140	345
355	250	315	307	750	850	355	325	135	135	355	392	8x9.5	296	140	345
400	315	355	362	850	980	410	360	170	170	400	438	8x9.5	361	140	385
450	315	400	204	940	1080	445	410	190	190	450	488	8x9.5	361	140	428
500	355	450	442	1050	1210	510	440	203	203	500	538	8x9.5	400	140	480
560	400	500	511	1200	1350	560	530	247	247	560	600	12x9.5	443	140	528

160 - 180

200-560

Code IVPFPK	IP class	Phase	Voltage, V at 50Hz	Capacity, m³/h	Pressure, Pa	Power, W	Noise level, dB(A)_4m	Speed, min^-1
Code IVPFPK	IP class	Phase	Voltage, V at 50Hz	Capacity, m³/h	Pressure, Pa	Power, W	Noise level, dB(A)_4m	Speed, min^-1
160/2/3F	55	III	400	1100	520	180	60	2800
160/2/1F	55	I	230	1100	520	180	60	2800
160/2D/3F	55	III	400	1800	640	250	68	2800
160/2D/1F	55	I	230	1800	640	250	68	2800
160/4/3F	55	III	400	1150	250	120	58	1400
160/4/1F	55	I	230	1150	250	120	58	1400
180/2/3F	55	III	400	2200	1000	550	75	2800
180/2/1F	55	I	230	2200	1000	550	75	2800
200/2/3F	55	III	400	3050	1200	1100	79	2800
200/4/3F	55	III	400	1540	300	180	59	1400
200/4/1F	55	I	230	1540	300	180	59	1400
250/2/3F	55	III	400	3900	1300	1500	80	2800
250/4/3F	55	III	400	2160	325	250	60	1400
250/4/1F	55	I	230	2160	325	250	60	1400
315/2/3F	55	III	400	6500	1820	2200	82	2800
315/2D/3F	55	III	400	8600	2180	3000	83	2800
315/4/3F	55	III	400	3200	450	370	66	1400
315/4/1F	55	I	230	3200	450	370	66	1400
315/4D/3F	55	III	400	3780	600	550	67	1400
315/4D/1F	55	I	230	3780	600	550	67	1400
355/2/3F	55	III	400	9630	2500	4000	85	2800
355/4/3F	55	III	400	5800	630	750	68	1400
355/4/1F	55	I	230	5800	630	750	68	1400
400/2/3F	55	III	400	15120	3400	7500	92	2800
400/4/3F	55	III	400	7100	750	1100	71	1400
450/2/3F	55	III	400	17640	3900	11000	95	2800
450/4/3F	55	III	400	9000	900	1500	76	1400
500/2/3F	55	III	400	22356	5020	18500	97	2800
500/4/3F	55	III	400	13000	1200	2200	80	1400
500/4D/3F	55	III	400	14800	1260	3000	80	1400
500/6/3F	55	III	400	8100	470	7500	71	900
560/4/3F	55	III	400	17400	1445	4000	81	1400
560/4D/3F	55	III	400	21700	1620	5500	82	1400

Pressure loss diagrams
