Axial duct fans WK ≤915 m³/h
| Price / WK: |
Select
|
| Speed switch: |
Select
|
Qty.:
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item
Axial duct fans WK ≤915 m³/h
- three speed motors (except WK160 model)
- galvanized steel 1 mm housing
- with protective grille (except WK160 model)
- max. temperature of extracted air 40 °C
- made in Poland
- 2 years warranty

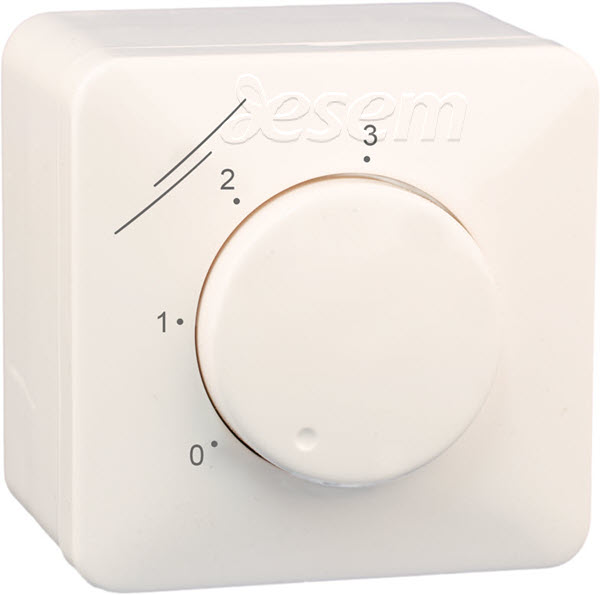

- WK200, WK250, WK315 models recommended to control the speed through the three-speed controller:
Brand: ESEM
|

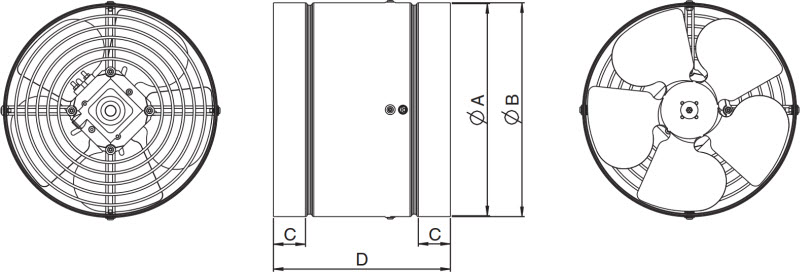

Code
|
ØA
|
ØB
|
C
|
D
|
| WK160 | 160 | 161 | 30 | 175 |
|
WK200
|
210
|
211
|
40
|
215
|
| WK250 | 260 | 261 | 40 | 215 |
| WK315 | 325 | 326 | 60 | 300 |
| Code | Capacity, m³/h | Power, W |
Pressure, Pa
|
Noise level, dB | Protection class, IP | ||||||||
| Speed | Speed | Speed | Speed | ||||||||||
| I | II | III | I | II | III | I | II | III | I | II | III | ||
| WK160 | 185 | - | - | 32 | - | - | 32 | - | - | 52 | - | - | X2 |
| WK200 | 315 | 325 | 345 | 14 | 19 | 34 | 20 | 30 | 52 | 31 | 33 | 36 | X4 |
| WK250 | 385 | 425 | 445 | 24 | 32 | 46 | 24 | 40 | 58 | 39 | 40 | 41 | X4 |
| WK315 | 565 | 750 | 915 | 28 | 40 | 58 | 7 | 21 | 21 | 23 | 32 | 39 | X4 |

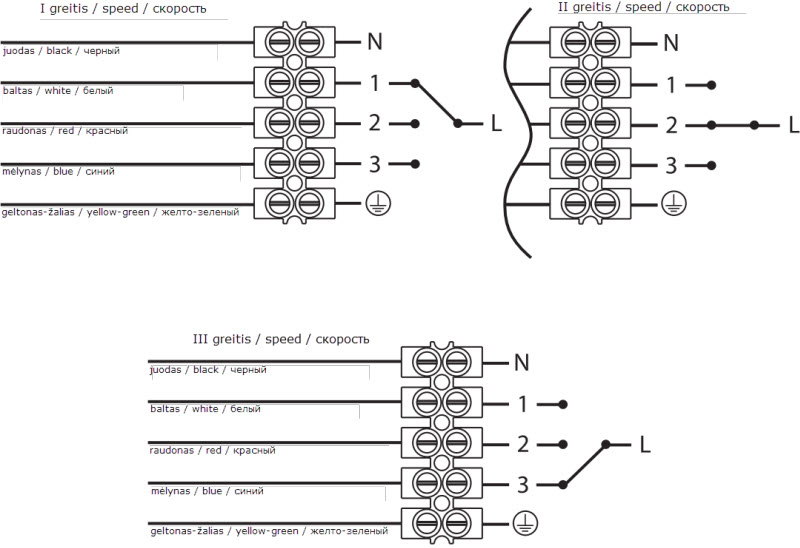

Connection to the power supply
