Axial duct fans PRO
| Price / PRO: |
Select
|
Qty.:
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item

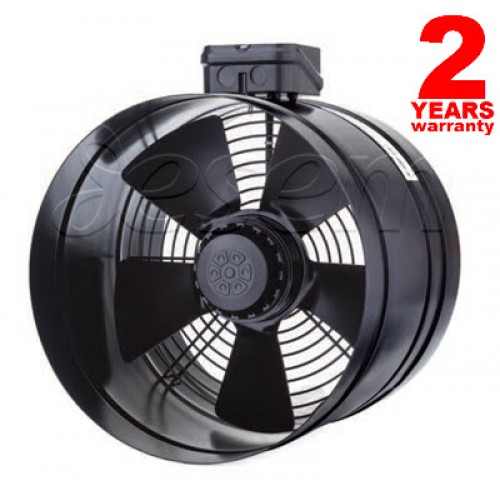

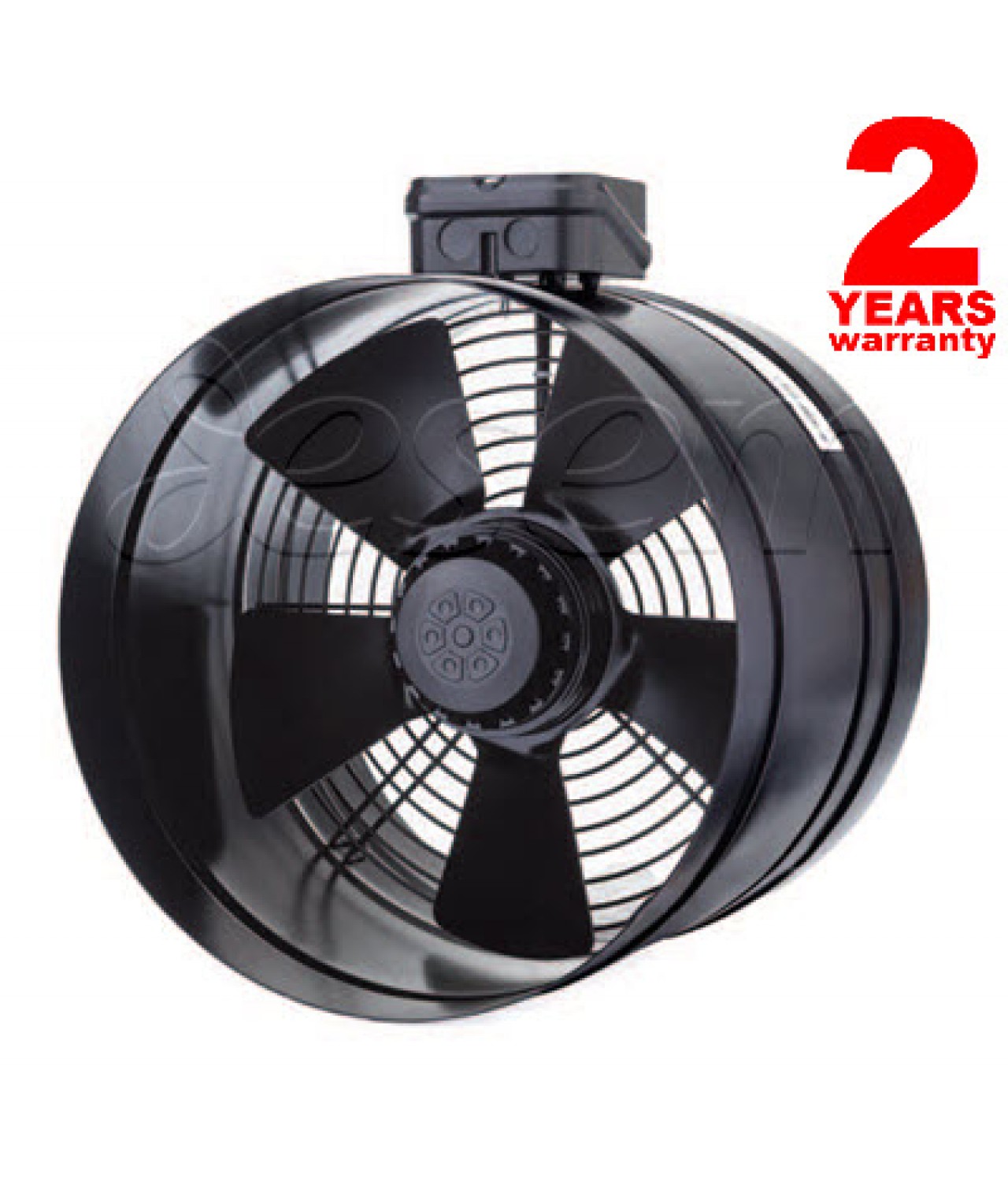

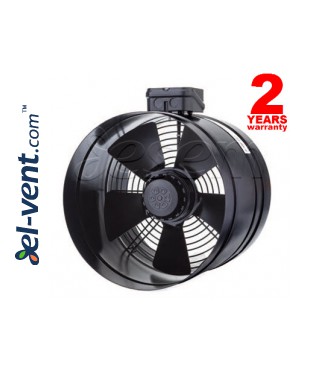

Axial duct fans PRO
- PRO - axial duct fans with increased pressure and capacity
- powder-coated metal casing and impeller and protective grille
- max. air flow temperature 40 °C
- protection class IP44
- made in Turkey
- 24 months warranty
- recommended speed controllers:
- ESTR-1-10L10 - 5-stage transformer controller, ideal for all models, precise control over a 5-step range
- RVS 0.5 A - 5-stage transformer controller, suitable for 200 and 250 mm models, precise control over a 5-step range
- Control S EETY0.5 - electronic speed controller, suitable for 200 and 250 mm models, control will not be very precise, the fan may make additional noise during operation
Brand: ESEM
|

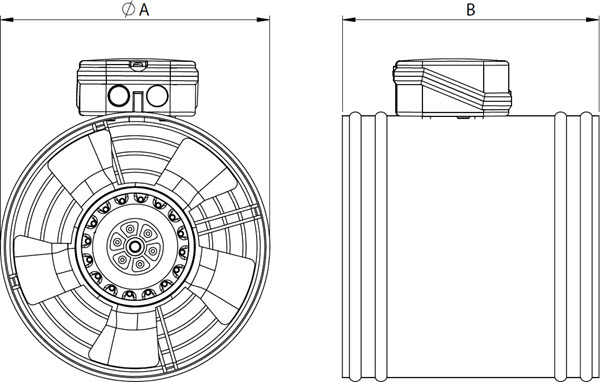

Code
|
ØA
|
B
|
C |
| PRO200 | 200 | 200 | - |
| PRO250 | 250 | 250 | - |
| PRO300 | 297 | 250 | 347 |
| PRO350 | 347 | 300 | 397 |
|
Code PRO
|
Voltage, V
|
Frequency, Hz | Power, W | Current, A | Speed, min-1 |
Capacity, m³/h
|
Noise level, dB(A) | Insulation class |
| 200 | 230 | 50/60 | 63 | 0.28 | 2750/3200 | 680/790 | 50 | B |
| 250 | 230 | 50/60 | 100 | 0.5 | 2700/3100 | 1500/1700 | 55 | B |
| 300 | 230 | 50 | 163 | 0.585 | 2550 | 2025 | 54 | F |
| 350 | 230 | 50 | 240 | 0.775 | 2250 | 3110 | 58 | F |
