Air distributors for semi-rigid vent system OSD90


  1. Ventilation systems ›
  2. Ventilation ducting
  3. › HDPE ducting
  4. › Ø90 mm semi-rigid duct system
  5. › Air distributors for semi-rigid vent system OSD90

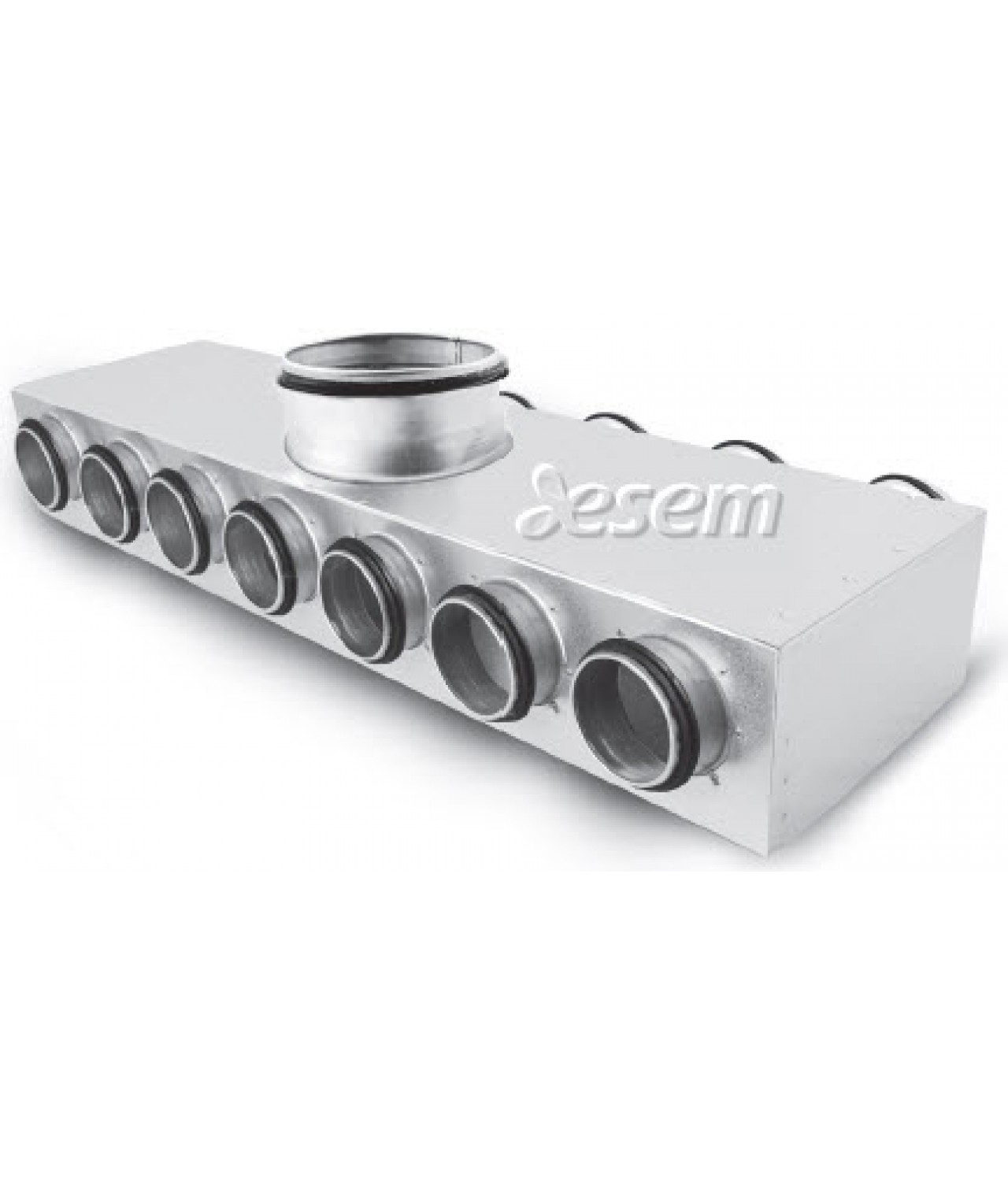

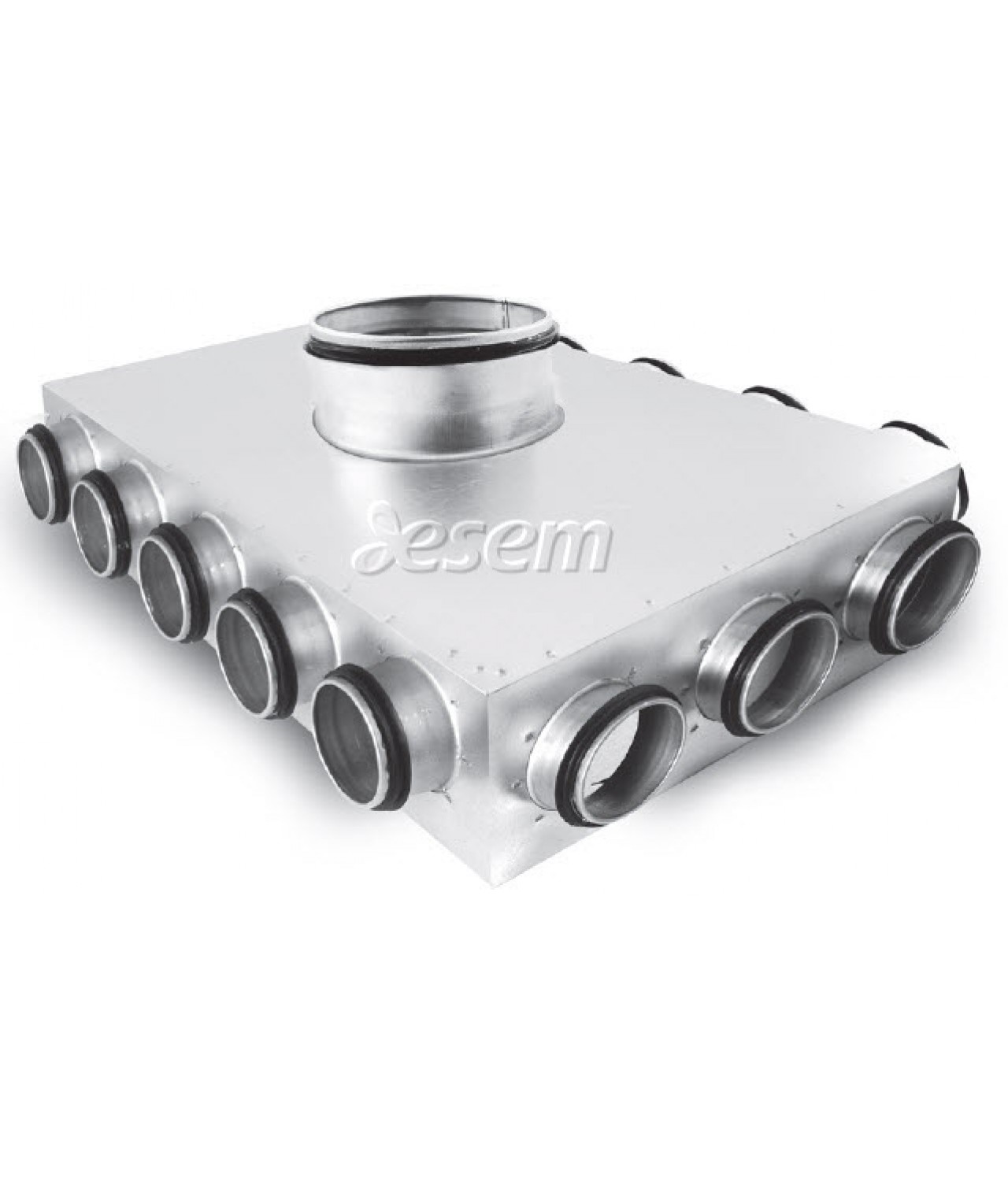

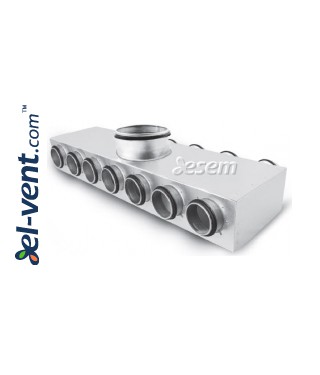

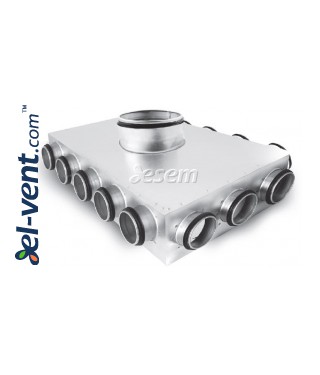

Air distributors for semi-rigid vent system OSD90 Air distributor OSD75/0/7/0/7/200M Air distributor OSD75/3/5/3/5/200M 75-90 mm duct connections
Diameter:
Select
  • Ø 80 mm
  • Ø 100 mm
  • Ø 125 mm
  • Ø 160 mm
  • Ø 200 mm
  • Ø 250 mm
Price / OSD:
Select
  • OSD90/0/3/0/3/xxxM 140.13 € 63.07 € (-54%)
  • OSD90/0/4/0/4/xxxM 173.19 € 77.94 € (-54%)
  • OSD90/0/5/0/5/xxxM 210.21 € 94.60 € (-54%)
  • OSD90/0/7/0/7/xxxM 269.23 € 121.16 € (-54%)
  • OSD90/1/2/1/0/xxxM 208.36 € 93.76 € (-55%)
  • OSD90/10/0/0/0/xxxM 269.23 € 121.16 € (-54%)
  • OSD90/2/4/2/0/xxxM 163.25 € 73.47 € (-54%)
  • OSD90/3/5/3/5/xxxM 255.38 € 114.93 € (-54%)
  • OSD90/3/6/3/0/xxxM 234.99 € 105.75 € (-54%)
  • OSD90/3/6/3/6/xxxM 286.14 € 128.77 € (-54%)
Qty.:

European delivery - *-2 / 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

Air distributors for semi-rigid vent system OSD90

Send

* Within 2 days can be delivered the following air distributors: OSD90/0/5/0/5/160M

Delivery time for other distributors ~ 21 working days.

  • conforms to C-tightness class according to EN12237 standard
  • exceptionally simple installation - just plug the duct on the connector
  • made from galvanized steel
  • marking:
Ød1 - diffusers connector diameter, mm
Ød2 - rigid duct connectors diameter, mm
n - number of rigid duct connections, Ø75 or 90 mm - inner connections
M - d1 male connector
Code
 A B C L
d1
 n d2
OSD63/2/4/2/0 360 180 75 60 80-250 8 63
OSD63/0/3/0/3 270 270 75 60 80-250 6 63
OSD63/0/4/0/4 360 360 75 60 80-250 8 63
OSD63/3/6/3/0 540 270 75 60 80-250 12 63
OSD63/0/5/0/5 450 450 75 60 80-250 10 63
OSD63/0/7/0/7 630 280 75 60 80-250 14 63
OSD63/3/5/3/5 450 270 75 60 80-250 16 63
OSD63/3/6/3/6 540 270 75 60 80-250 18 63
OSD75/2/4/2/0 400 200 90 60 80-250 8 63
OSD75/0/3/0/3 300 300 90 60 80-250 6 63
OSD75/0/4/0/4 400 300 90 60 80-250 8 63
OSD75/3/6/3/0 600 300 90 60 80-250 12 63
OSD75/0/5/0/5 500 300 90 60
80-250
 10 63
OSD75/0/7/0/7 700 300 90 60 80-250 14 63
OSD75/3/5/3/5 500 300 90 60 80-250 16 63
OSD75/3/6/3/6 600 300 90 60 80-250 18 63
OSD90/2/4/2/0 400 200 90 60 80-250 8 75
OSD90/0/3/0/3 300 300 90 60 80-250 6 75
OSD90/0/4/0/4 400 300 90 60 80-250 8 75
OSD90/3/6/3/0 600 300 90 60 80-250 12 75
OSD90/0/5/0/5 500 300 90 60 80-250 10 75
OSD90/0/7/0/7 700 300 90 60 80-250 14 75
OSD90/3/5/3/5 500 300 90 60 80-250 16 75
OSD90/3/6/3/6 600 300 90 60 80-250 18 75
